Cuvette vs. Cuvette-Free UV-Vis Systems: A Complete Guide for Small-Volume Sample Analysis

Zoe Hayes Nov 28, 2025 302

This article provides researchers, scientists, and drug development professionals with a comprehensive analysis of cuvette-based and cuvette-free UV-Vis systems for small sample volumes.

Cuvette vs. Cuvette-Free UV-Vis Systems: A Complete Guide for Small-Volume Sample Analysis

Abstract

This article provides researchers, scientists, and drug development professionals with a comprehensive analysis of cuvette-based and cuvette-free UV-Vis systems for small sample volumes. It covers the foundational principles of both technologies, explores their specific methodological applications in areas like nucleic acid quantitation and drug stability testing, offers practical troubleshooting and optimization strategies, and delivers a direct comparative validation to guide instrument selection. The synthesis of this information aims to empower professionals in biomedical and clinical research to optimize their workflows, improve data accuracy, and make informed decisions that enhance laboratory efficiency.

Understanding UV-Vis Systems: From Traditional Cuvettes to Modern Cuvette-Free Technology

Ultraviolet-Visible (UV-Vis) spectrophotometry is a foundational analytical technique in scientific research and drug development, measuring the amount of discrete wavelengths of UV or visible light absorbed by or transmitted through a sample [1]. This technique operates on the principle of the Beer-Lambert Law (Beer's Law), which establishes that the absorption of light by a sample is directly proportional to the concentration of the absorbing species and the pathlength—the distance light travels through the sample [2] [1]. The fundamental relationship is expressed as A = ε × c × l, where Absorbance (A) depends on the molar absorptivity (ε), concentration (c), and pathlength (l) [3]. This principle is universal across spectrophotometry systems, though the method of containing the sample—the core differentiator between the technologies discussed here—varies significantly.

The choice between cuvette-based and microvolume systems is critical for optimizing accuracy, efficiency, and cost-effectiveness in laboratories. This document provides a detailed comparison of these core technologies, framed within the context of research involving small sample volumes, and includes standardized protocols to guide their application.

Cuvette-Based Spectrophotometry

Cuvette-based systems are the traditional workhorses of spectrophotometry. A cuvette is a small, transparent container—typically with a standard pathlength of 10 mm and a volume of 3.5 mL—that holds the sample for analysis [3]. The material of the cuvette is a key consideration: optical glass is suitable for visible light measurements (~340–2500 nm), while fused quartz is essential for UV-range applications (~190–2500 nm) due to its superior UV transmission and chemical resistance [1] [3].

These systems are indispensable for specific applications. The mostly closed vessel of a cuvette is ideal for volatile organic solvents (e.g., ethanol, acetone), as it significantly slows evaporation compared to an open droplet [2]. Furthermore, the standardized, longer pathlength is required for certain assays, such as OD600 measurements for monitoring microbial cell density in liquid cultures and kinetic assays (e.g., enzyme activity studies) that require stable, continuous monitoring over time [2] [4].

Microvolume Systems

Microvolume systems, often called "cuvette-free" systems, represent a significant technological advancement for sample-limited studies. These instruments use surface tension to hold a very small sample droplet (typically 0.5–2 µL) between two optical surfaces, creating a temporary, user-defined measurement chamber [2] [5].

The primary advantage is dramatic sample conservation, preserving precious material for downstream analyses [2] [6]. This approach often eliminates the need for dilutions, as technologies like SmartPath can automatically adjust the effective pathlength to bring highly concentrated samples within the instrument's linear dynamic range, thereby reducing pipetting errors and saving time [2]. Cleanup is also simplified, involving only a quick wipe, which reduces the risk of cross-contamination and eliminates the cost and waste associated with disposable cuvettes [2].

Comparative Analysis: Cuvette vs. Microvolume

The decision between these two technologies hinges on specific sample properties and experimental goals. The following table summarizes the core differentiators.

Table 1: Comprehensive Comparison of Cuvette-Based and Microvolume Spectrophotometry

Parameter Cuvette-Based Systems Microvolume Systems
Typical Sample Volume ~ 3.5 mL (standard 10 mm pathlength) [3] 0.5 - 2 µL [2] [5]
Pathlength Fixed (usually 10 mm) [3] Automatically or manually adjustable (e.g., 0.2 mm or 1.0 mm) [2] [7]
Ideal Sample Types Aqueous and volatile organic solvents; samples for kinetic assays or OD600 [2] Aqueous solutions (e.g., nucleic acids, proteins) [2] [7]
Key Advantages - Minimal solvent evaporation- Standardized for OD600 & kinetics- Suitable for a wide range of solvents - Minimal sample consumption- Often no dilution required- Fast & easy cleanup- Reduced consumable cost & waste
Primary Limitations - High sample volume consumption- Requires dilutions for concentrated samples- Time-consuming cleaning or recurring cost of disposables - Unsuitable for volatile solvents- Not ideal for kinetic studies- Unsuitable for viscous samples that breach the liquid column

Experimental Protocols

Protocol 1: Nucleic Acid Quantification and Purity Assessment using a Microvolume System

This protocol is designed for rapid quantification of DNA or RNA and assessment of sample purity using a microvolume spectrophotometer, ideal for checking samples post-purification or before sensitive downstream applications like sequencing or PCR.

Research Reagent Solutions:

Table 2: Essential Materials for Nucleic Acid Quantification

Item Function
Purified Nucleic Acid Sample The analyte of interest (e.g., dsDNA, ssDNA, RNA).
Elution Buffer or TE Buffer A neutral pH, low-EDTA buffer used to dilute or resuspend the sample; serves as the blanking solution.
Deionized Water For cleaning the measurement pedestals between samples.
Lint-Free Laboratory Wipes For drying the pedestals after cleaning without leaving fibers.

Methodology:

  • Instrument Power-Up: Turn on the microvolume spectrophotometer and associated computer. Launch the control software and initialize the instrument. Select the "Nucleic Acid" application within the software.
  • Blanking Procedure: Pipette 1–1.5 µL of the chosen blank solution (e.g., elution buffer) onto the lower measurement pedestal. Perform a blank measurement by closing the pedestal arm. The instrument will calibrate to this reference.
  • Sample Cleaning: Open the arm and thoroughly wipe both the upper and lower pedestals with a clean, lint-free lab wipe.
  • Sample Measurement: Pipette 1–1.5 µL of the nucleic acid sample onto the lower pedestal. Close the arm and initiate the measurement. The instrument will automatically select the appropriate pathlength and display the concentration (in ng/µL for A260) and purity ratios (A260/A280 and A260/A230).
  • Post-Measurement Cleanup: Open the arm and wipe both pedestals clean. The instrument is now ready for the next sample or blank.
  • Data Interpretation: Record the concentration. Assess purity: an A260/A280 ratio of ~1.8 is ideal for pure DNA, while ~2.0 is ideal for pure RNA. An A260/A230 ratio typically should be between 2.0-2.2, indicating low salt or organic solvent contamination.

The workflow for this protocol is as follows:

G Start Start Power Power Up Instrument and Software Start->Power Blank Load Blank (1-1.5 µL Buffer) Power->Blank Clean1 Wipe Pedestals Clean Blank->Clean1 Load Load Sample (1-1.5 µL) Clean1->Load Measure Perform Measurement Load->Measure Clean2 Wipe Pedestals Clean Measure->Clean2 Data Record Concentration and Purity Ratios Clean2->Data End End Data->End

Protocol 2: Microbial Culture Density Measurement (OD600) using a Cuvette

This protocol details the standard procedure for measuring the optical density at 600 nm (OD600) of a bacterial culture using a cuvette spectrophotometer, a fundamental technique in microbiology for monitoring growth.

Research Reagent Solutions:

Table 3: Essential Materials for OD600 Measurement

Item Function
Sterile Culture Medium (e.g., LB Broth). Used as the blanking solution to negate the absorbance of the medium itself.
Bacterial Culture The microbial sample for which the cell density is to be determined.
Disposable or Reusable Cuvettes Transparent containers for holding the blank and sample. Disposable plastic is suitable for visible light OD600.
Pipettes and Sterile Tips For accurate handling of liquid samples.

Methodology:

  • Instrument Preparation: Turn on the spectrophotometer and allow it to warm up for at least 15 minutes. Set the wavelength to 600 nm.
  • Blanking: Pipette approximately 3 mL of sterile culture media into a clean cuvette. Place the cuvette in the sample holder and close the lid. Perform a blank measurement to set the baseline absorbance to zero.
  • Sample Dilution (if required): For dense cultures, a preliminary measurement may be needed. If the OD600 reading is above 1.4 (beyond the linear range for a 10 mm pathlength), the culture must be diluted with fresh sterile medium until the reading falls within the linear range of 0.1–0.8 [4].
  • Sample Measurement: Mix the culture thoroughly. Pipette 3 mL of the (diluted) culture into a clean cuvette. Wipe the outside of the cuvette to remove fingerprints or droplets. Place it in the sample holder and record the OD600 value.
  • Data Interpretation and Conversion: The recorded OD600 value is proportional to cell density. If a conversion factor has been established for comparing microvolume and cuvette data (as shown in Figure 1), apply it: Cuvette OD600 = Pedestal OD600 × Conversion Factor [4].

The workflow for this protocol, including the potential dilution step, is as follows:

G Start Start Power Power Up and Set Wavelength to 600nm Start->Power Blank Blank with Sterile Media Power->Blank Load Load Culture Sample into Cuvette Blank->Load Measure Measure OD600 Load->Measure Decision Is OD600 > 1.4? Measure->Decision Dilute Dilute Culture with Fresh Medium Decision->Dilute Yes Record Record Final OD600 Decision->Record No Dilute->Measure End End Record->End

The choice between cuvette-based and microvolume spectrophotometry is not a matter of one technology being superior to the other, but rather of selecting the right tool for the specific experimental context. For high-volume samples, volatile solvents, kinetic assays, and standardized OD600 measurements, cuvette-based systems remain indispensable. For the vast majority of modern molecular biology workflows involving the quantification of nucleic acids and proteins—where sample volume is limited and throughput is key—microvolume systems offer unmatched efficiency and conservation.

The ongoing innovation in microvolume instrumentation, including the integration of fluorescence detection and enhanced connectivity with laboratory information management systems (LIMS), continues to solidify its role as a core technology in precision bioscience research and drug development [8] [6]. By applying the comparative data and detailed protocols provided herein, researchers can make informed decisions that optimize their workflows, ensure data accuracy, and preserve valuable samples.

Ultraviolet-visible (UV-Vis) spectroscopy is an analytical technique that measures the amount of discrete wavelengths of UV or visible light absorbed by or transmitted through a sample [1]. This methodology is widely used in diverse applied and fundamental applications ranging from bacterial culturing and drug identification to nucleic acid purity checks and quantitation [1]. The core principle governing this technique is the Beer-Lambert Law (often referred to as Beer's Law), which establishes that the absorption of light by a sample is directly proportional to both the concentration of the absorbing species and the pathlength the light travels through the sample [2] [9]. Pathlength, defined as the distance light travels while passing through the sample, is typically controlled by a container like a cuvette or the defined gap between two surfaces in microvolume measurements [2].

The fundamental equation of the Beer-Lambert Law is: [ A = \varepsilon \cdot c \cdot l ] where:

  • ( A ) is the measured absorbance (dimensionless),
  • ( \varepsilon ) is the molar absorptivity (L·mol⁻¹·cm⁻¹),
  • ( c ) is the concentration of the absorbing species (mol·L⁻¹), and
  • ( l ) is the pathlength (cm) [9] [10].

This relationship is central to all quantitative applications of UV-Vis spectroscopy, making the accurate determination and control of pathlength a critical aspect of instrument design and operation. The two primary approaches to managing this variable—fixed pathlength (cuvettes) and dynamic pathlength (microvolume systems)—form the basis of this application note.

Fixed Pathlength Cuvette Systems

Operational Principles and Instrumentation

Fixed pathlength cuvette systems represent the traditional approach to UV-Vis spectroscopy. In these systems, the sample is contained within a dedicated vessel called a cuvette, which features two precisely aligned parallel optical windows separated by a fixed distance [11] [12]. The most common pathlength is 10 mm, although other pathlengths (e.g., 1 mm, 2 mm, 5 mm) are available for specialized applications [12]. The standard cuvette has a square cross-section with external dimensions of approximately 12.5 × 12.5 mm to fit into standard spectrometer holders [12].

A typical cuvette-based spectrophotometer consists of several key components arranged in sequence [1]:

  • Light Source: Often a dual-lamp system with a deuterium lamp for UV light and a tungsten or halogen lamp for visible light.
  • Wavelength Selector: Usually a monochromator containing a diffraction grating (typically with 1200 grooves per mm or more) to select specific wavelengths.
  • Sample Holder: A compartment designed to position the cuvette securely in the light path.
  • Detector: Commonly a photomultiplier tube (PMT), photodiode, or charge-coupled device (CCD) that converts transmitted light intensity into an electrical signal.

The instrument operates by comparing the intensity of light passing through the sample (( I )) to the intensity passing through a reference or blank solution (( I0 )) [1]. The logarithm of the ratio ( I0/I ) yields the absorbance value according to the Beer-Lambert Law [9].

Cuvette Materials and Selection Criteria

The choice of cuvette material is critical as it determines the wavelength range accessible for measurement and the cuvette's durability and chemical resistance [12].

Table 1: Cuvette Materials and Their Optical Properties

Material Wavelength Range Primary Applications Advantages Limitations
Optical Glass ~340-2500 nm [12] Colorimetric assays, OD measurements in cell cultures, visible light work [12] Affordable, reusable, good optical clarity in visible/NIR [12] Not suitable for UV measurements below ~340 nm [12]
UV-Grade Quartz ~190-2500 nm [12] UV-Vis spectroscopy, nucleic acid and protein quantification, high-precision work [12] Full UV-Vis transparency, excellent chemical/thermal resistance [12] More expensive than glass, fragile [12]
Plastic (PMMA/Polystyrene) ~380-780 nm [11] [12] Educational labs, protein assays, bacterial OD measurements [12] Low cost, disposable, shatter-resistant [12] Not UV-transparent, limited chemical resistance, less precise optics [12]
IR Quartz ~220-3500 nm [12] Mid-IR spectroscopy, specialized laser applications [12] Excellent IR transmission Very expensive, limited to specialized applications [12]

For UV measurements below approximately 300 nm, such as nucleic acid quantification at 260 nm, quartz cuvettes are essential as they provide sufficient transparency in this spectral region [11] [12]. Standard glass and plastic cuvettes absorb strongly in the UV range and will produce inaccurate results for these applications [11].

Research Reagent Solutions for Cuvette-Based Analysis

Table 2: Essential Materials for Cuvette-Based Experiments

Item Function Application Notes
Quartz Cuvettes (10 mm pathlength) Holds sample in fixed, defined light path [12] Required for UV measurements; reusable with proper cleaning [12]
Reference/Solvent Blank Zeroes the instrument for solvent absorbance [1] [10] Must be the same solvent used for sample preparation [10]
Calibration Standards Establishes concentration-absorbance relationship [10] At least 3-5 concentrations spanning expected range of unknown [10]
Digital Pipettes and Volumetric Flasks Precise solution preparation [10] Essential for accurate calibration curves; preferred over graduated cylinders [10]
Cuvette Cleaning Supplies Prevents cross-contamination between samples [2] Requires washing and drying; disposable cuvettes avoid this step [2]

Dynamic Pathlength Microvolume Systems

Operational Principles and Innovative Technologies

Dynamic pathlength microvolume systems represent a significant advancement in UV-Vis instrumentation, designed specifically to address the challenges of measuring small sample volumes. In these systems, a tiny sample droplet (typically 0.5-2 µL) is held by surface tension between two optical surfaces, eliminating the need for a traditional container [2] [13]. The key innovation in these systems is their ability to automatically adjust the pathlength to optimize measurement for samples of varying concentrations.

Advanced microvolume instruments employ technologies like SmartPath, which automatically selects the correct pathlength for each measurement [2]. This dynamic adjustment enables an exceptionally wide dynamic range—for example, from 0.75 ng/µL to 37,500 ng/µL for dsDNA on certain instruments [2]. Unlike fixed pathlength systems that require dilution of concentrated samples, microvolume systems can measure highly concentrated samples directly by reducing the pathlength, thereby maintaining absorbance within the instrument's linear range [2].

An emerging innovation in this field is the slope spectroscopy technique (or slope method), which varies the pathlength during measurement and uses the resulting change in absorbance to calculate concentration without requiring a separate reference measurement [13]. This approach offers several advantages: it shortens total measurement time by eliminating the reference sampling phase, reduces error from light source fluctuations, and determines concentration without requiring knowledge of the absolute pathlength [13].

Microvolume System Components and Workflow

Microvolume spectrophotometers feature a different configuration from traditional systems [1]:

  • Light Source: Often a single high-intensity xenon lamp covering both UV and visible ranges.
  • Fiber Optics: Used to direct light to and from the microvolume sample.
  • Sample Pedestal: Precision-engineered surfaces between which the nanodroplet is suspended.
  • Detection System: Typically a high-sensitivity CCD or photodiode array detector.

The measurement process involves direct aspiration or pipetting of a small sample volume (1-2 µL) onto the measurement surface, followed by automated pathlength optimization and measurement [2]. After measurement, cleanup is simple—just wiping away the sample with a clean, dry lab wipe—significantly reducing the risk of cross-contamination compared to cuvette washing procedures [2].

G Microvolume Measurement Workflow Start Start Measurement Pipette Pipette 1 µL Sample Start->Pipette SurfaceTension Surface Tension Holds Sample Between Optical Surfaces Pipette->SurfaceTension PathlengthOpt Automatic Pathlength Optimization (SmartPath) SurfaceTension->PathlengthOpt Measure Absorbance Measurement at Multiple Wavelengths PathlengthOpt->Measure Calculate Concentration Calculation & Purity Assessment Measure->Calculate Clean Wipe Clean with Lab Tissue Calculate->Clean End Measurement Complete Clean->End

Diagram 1: Microvolume systems simplify workflow by eliminating cuvette handling and cleaning steps.

Comparative Analysis: Performance and Applications

Technical Specifications and Performance Metrics

Table 3: Quantitative Comparison of Fixed Pathlength Cuvette vs. Dynamic Pathlength Microvolume Systems

Parameter Fixed Pathlength Cuvette Systems Dynamic Pathlength Microvolume Systems
Typical Sample Volume 50 µL to 3.5 mL [12] [13] 0.5-2 µL [2] [13]
Pathlength Fixed (typically 10 mm) [12] Automatically adjustable (e.g., 0.2-1 mm) [2] [13]
Dynamic Range Limited by fixed pathlength; often requires dilution [2] Very wide; e.g., 0.75-37,500 ng/µL for dsDNA [2]
Measurement Time Longer due to cuvette filling/cleaning [13] Faster; ~10-30 seconds per sample [2]
Cleanup Process Washing and drying required; time-consuming [2] Simple wipe; minimal risk of contamination [2]
Ideal Sample Types Aqueous and volatile solvents; kinetic assays; microbial suspensions [2] Water-based nucleic acids and proteins; high-concentration samples [2]

Application-Specific Selection Guidelines

The choice between fixed pathlength cuvettes and dynamic pathlength microvolume systems depends heavily on the specific application, sample characteristics, and workflow requirements [2].

When to choose microvolume systems:

  • Nucleic Acid Quantification: Microvolume measurements have become the standard for DNA/RNA quantitation, particularly with limited samples [2]. Common workflows like spin column mini preps yield DNA concentrations that fall comfortably within the dynamic range of microvolume spectrophotometers [2].
  • Protein Analysis: Ideal for Bradford, BCA, and other protein assays when sample volume is limited [2].
  • Sample Conservation: Using only 1 µL preserves precious samples for downstream applications [2].
  • High-Throughput Workflows: The rapid measurement and cleanup enable faster processing of multiple samples [2].

When to choose fixed pathlength cuvette systems:

  • Samples in Volatile Solvents: The enclosed cuvette slows evaporation of organic solvents, preserving sample volume and ensuring measurement accuracy [2].
  • OD600 Measurements: The standard 10 mm pathlength is ideal for optical density measurements of bacterial or yeast cultures [2].
  • Kinetic Assays: The stable, controlled environment of a cuvette allows for monitoring changes in absorbance over time, such as in enzyme activity assays [2].
  • Specialized Solvent Systems: When using solvents that might not form stable droplets in microvolume systems [2].

G Cuvette vs. Microvolume Selection Guide Start Sample Analysis Required Volume Sample Volume < 10 µL? Start->Volume Kinetic Kinetic or Time-Course Assay? Volume->Kinetic No Microvolume Choose Microvolume System • 1 µL sample required • Wide dynamic range • No dilution typically needed • Quick wipe cleanup Volume->Microvolume Yes Solvent Volatile Organic Solvent? Kinetic->Solvent No Cuvette Choose Cuvette System • 50 µL - 3.5 mL sample • Suitable for kinetics • Enclosed environment • Standard 10 mm pathlength Kinetic->Cuvette Yes Solvent->Microvolume No Solvent->Cuvette Yes

Diagram 2: This decision tree guides researchers in selecting the appropriate measurement system based on their specific sample properties and experimental requirements.

Experimental Protocols

Protocol 1: Nucleic Acid Quantification Using Fixed Pathlength Cuvettes

Purpose: To determine the concentration and purity of DNA or RNA samples using a quartz cuvette and fixed pathlength spectrophotometer.

Materials and Reagents:

  • Quartz cuvettes (10 mm pathlength, UV-transparent) [12]
  • DNA or RNA sample
  • TE buffer or molecular grade water (reference blank)
  • Micropipettes and tips
  • Spectrophotometer with UV capability

Procedure:

  • Instrument Preparation:
    • Power on the spectrophotometer and allow it to warm up for 15-30 minutes.
    • Set the wavelength to 260 nm for nucleic acid quantification [1] [9].
    • If measuring purity, program additional wavelengths: 280 nm (protein contamination) and 230 nm (organic compound contamination).

  • Blank Measurement:

    • Fill a quartz cuvette with the same buffer used to dissolve the nucleic acid sample (e.g., TE buffer).
    • Carefully wipe the outside of the cuvette with lint-free tissue to remove fingerprints.
    • Place the cuvette in the sample holder with the optical windows aligned in the light path.
    • Perform the blank measurement to zero the instrument [1].

  • Sample Measurement:

    • Replace the blank cuvette with a cuvette containing the nucleic acid sample.
    • Ensure the sample volume is sufficient for the cuvette being used (typically 0.05-3.5 mL depending on cuvette type) [12].
    • Record the absorbance at 260 nm (A₂₆₀).
    • For purity assessment, also record A₂₈₀ and A₂₃₀.

  • Calculation and Interpretation:

    • Calculate nucleic acid concentration:
      • For dsDNA: Concentration (ng/µL) = A₂₆₀ × 50 ng/µL × dilution factor
      • For RNA: Concentration (ng/µL) = A₂₆₀ × 40 ng/µL × dilution factor
    • Assess purity using ratios:
      • A₂₆₀/A₂₈₀ ~1.8 indicates pure DNA; ~2.0 indicates pure RNA
      • A₂₆₀/A₂₃₀ should be >2.0 for pure nucleic acid preparations

Troubleshooting:

  • If A₂₆₀ > 1.0, dilute the sample and repeat measurement to ensure linearity [1] [9].
  • If using glass or plastic cuvettes for UV measurements, switch to quartz as these materials absorb UV light [11] [12].

Protocol 2: Direct Nucleic Acid Measurement Using Dynamic Pathlength Microvolume Systems

Purpose: To rapidly determine the concentration and purity of limited-volume nucleic acid samples using a microvolume spectrophotometer.

Materials and Reagents:

  • Microvolume spectrophotometer (e.g., DeNovix DS-Series, Thermo Scientific NanoDrop)
  • DNA or RNA sample (0.5-2 µL)
  • Lint-free laboratory wipes
  • Deionized water for cleaning

Procedure:

  • Instrument Initialization:
    • Power on the instrument and initialize the software.
    • Select the appropriate application (e.g., "dsDNA," "RNA").
    • The instrument may perform an automatic self-check.

  • Blank Measurement:

    • Apply 1-1.5 µL of the reference buffer (the same buffer containing the sample) to the measurement surface.
    • Close the sampling arm and initiate the blank measurement.
    • After measurement, wipe both the upper and lower optical surfaces clean with a lint-free wipe.

  • Sample Measurement:

    • Apply 0.5-2 µL of nucleic acid sample to the measurement surface.
    • Close the sampling arm to initiate measurement.
    • The instrument automatically:
      • Detects the sample and establishes optimal pathlength [2]
      • Measures absorbance at relevant wavelengths (260 nm, 280 nm, 230 nm)
      • Calculates and displays concentration and purity ratios

  • Data Recording and Cleanup:

    • Record the concentration, A₂₆₀/A₂₈₀ ratio, and A₂₆₀/A₂₃₀ ratio.
    • Open the sampling arm and thoroughly wipe both optical surfaces clean.
    • For subsequent samples, repeat steps 3-4.

Advantages and Limitations:

  • Advantages: Minimal sample consumption (1 µL), no dilution typically required, rapid measurement (<30 seconds), wide dynamic range, easy cleanup [2].
  • Limitations: Not suitable for volatile solvents (evaporate quickly), not ideal for kinetic studies, requires aqueous solutions that maintain droplet integrity [2].

The choice between fixed pathlength cuvettes and dynamic pathlength microvolume systems represents a fundamental decision in UV-Vis spectroscopic analysis, particularly for research involving small sample volumes. Fixed pathlength cuvettes offer proven reliability for traditional applications including kinetic assays, measurements in volatile organic solvents, and microbial OD measurements [2]. Their standardized 10 mm pathlength provides consistency across experiments and instruments, making them suitable for established protocols and methods.

Dynamic pathlength microvolume systems provide distinct advantages for modern laboratory workflows where sample conservation and efficiency are priorities [2]. The ability to measure samples as small as 0.5 µL without sacrificing dynamic range has revolutionized routine quantification of nucleic acids and proteins [2] [13]. The automatic pathlength optimization eliminates the need for time-consuming dilutions, while the simplified cleanup reduces cross-contamination risks [2].

For researchers and drug development professionals working with precious samples in limited volumes, microvolume systems typically offer superior practicality and efficiency. However, maintaining traditional cuvette-based capabilities remains essential for specialized applications requiring kinetic measurements, non-aqueous solvents, or specific regulatory protocols. The optimal laboratory configuration often includes both technologies, allowing researchers to select the most appropriate tool based on the specific requirements of each experiment.

In UV-Vis spectroscopy, the cuvette serves as the critical interface between your sample and the analytical instrument. The material of the cuvette directly determines the wavelengths of light that can pass through to interact with your sample, making material selection a fundamental first step in any experimental design. Choosing a cuvette material with an inappropriate transmission range for your target wavelengths will lead to inaccurate absorbance measurements, compromised data, and potentially flawed conclusions. This guide provides a detailed comparison of the optical properties, applications, and handling protocols for the three primary cuvette materials: quartz, glass, and plastic, with a specific focus on their role in small sample volume research within the broader context of cuvette versus cuvette-free analytical systems.

The essential function of any cuvette is to hold a liquid sample in a defined path length, allowing light to pass through with minimal interference so that the sample's absorption properties can be measured precisely. However, no material is perfectly transparent across all wavelengths. Each material possesses a unique molecular structure that absorbs specific photon energies, which defines its characteristic transmission window. Operating outside this window results in the cuvette itself absorbing most of the incident light, severely limiting the instrument's dynamic range and yielding unreliable data on sample concentration and purity. The following sections provide the detailed specifications and experimental protocols needed to make an informed selection.

Material Properties and Transmission Ranges

The selection of cuvette material is predominantly governed by the requirement for transparency at the analytical wavelengths in use. The following table summarizes the key optical characteristics and cost considerations for the primary cuvette materials.

Table 1: Comparative Properties of Common Cuvette Materials

Material Transmission Range Primary Applications Cost & Reusability Chemical Resistance
UV-Grade Quartz ~190 nm to 2,500 nm [14] [12] UV-Vis spectroscopy, nucleic acid/protein quantification, high-precision measurements [15] [12] High initial cost; reusable [15] Excellent; resistant to most organic solvents and acids [12]
IR Quartz ~230 nm to 3,500 nm [14] [16] Mid-IR spectroscopy, laser applications requiring IR transmission [14] [12] Very high cost; reusable Excellent [12]
Optical Glass ~340 nm to 2,500 nm [14] [16] Colorimetric assays, optical density measurements, educational labs [15] [12] Moderate cost; reusable [15] Excellent; resistant to most organic solvents and acids [12]
Plastic (PMMA/PS) ~380 nm to 780 nm [12] [16] Educational labs, visible light assays, bacterial OD measurements [15] [12] Low cost; disposable [15] Poor; sensitive to many organic solvents [11] [12]
UV-Transparent Plastic ~220 nm to 900 nm [12] Disposable option for UV work where quartz is unavailable [12] Moderate cost; disposable Poor to moderate [12]

Detailed Material Analysis

  • Quartz (Fused Silica): Quartz is the gold-standard material for full-spectrum analytical work. Its extended transmission range from the deep ultraviolet (~190 nm) through the visible and into the near-infrared makes it indispensable for UV-Vis spectroscopy [14] [12]. The key advantage of quartz is its transparency below 300 nm, which is essential for quantifying nucleic acids (at 260 nm) and proteins (at 280 nm), as well as for studying many organic compounds [15] [12]. While more fragile than plastic and more expensive than glass, its reusability and broad applicability make it a cost-effective choice for core research laboratories. Quartz is highly resistant to thermal shock and most organic solvents, enhancing its longevity with proper care [12].

  • Optical Glass: Optical glass cuvettes are a robust and cost-effective solution for measurements strictly within the visible and near-infrared spectrum (approx. 340–2500 nm) [14] [16]. They are not suitable for UV light applications because the material absorbs strongly at wavelengths below approximately 340 nm [15] [11]. Glass cuvettes are reusable and offer good chemical resistance against many organic solvents, making them suitable for a wide range of colorimetric assays, such as protein assays (e.g., BCA, Bradford) and bacterial culture density measurements [12]. Their primary advantage is their lower cost compared to quartz, making them a staple in undergraduate teaching laboratories and for routine visible light analyses [15].

  • Plastic: Plastic cuvettes, typically made from polystyrene (PS) or polymethyl methacrylate (PMMA), are the most economical option and are designed for single-use [15] [16]. Their transmission is generally confined to the visible range (~380–780 nm) [12] [16]. Their disposable nature eliminates the risk of cross-contamination and the need for meticulous cleaning, which is highly advantageous in high-throughput screening or diagnostic applications [15]. However, their optical quality is inferior to glass or quartz, and they are not suitable for use with many organic solvents, which can dissolve or craze the plastic material [11] [12]. Specialized UV-transparent plastics are available, extending usability down to about 220 nm, but they still lack the optical precision and chemical resistance of quartz [12].

Experimental Protocols for Material Selection and Use

Protocol 1: Selecting a Cuvette by Wavelength

Purpose: To systematically choose the correct cuvette material based on the analytical wavelength of the experiment.

Principle: The cuvette must be transparent at the wavelength of interest. Failure to do so results in signal loss and inaccurate absorbance readings, as the instrument measures the combined absorption of the cuvette and the sample.

Procedure:

  • Identify Analytical Wavelength: Determine the primary wavelength(s) for your measurement. For example:
    • Nucleic acid quantification: 260 nm
    • Protein quantification (direct): 280 nm
    • Common colorimetric assays (e.g., Bradford, BCA): 595 nm
    • Bacterial optical density: 600 nm
  • Consult Transmission Ranges: Refer to Table 1 above.
    • For wavelengths below 340 nm, you must use UV-grade quartz or UV-transparent plastic [15] [12].
    • For wavelengths between 340 nm and 380 nm, optical glass or quartz is appropriate.
    • For wavelengths in the visible range (380-780 nm), plastic, optical glass, or quartz can be used, with cost and reusability being the deciding factors [15] [12].
  • Verify with Solvent Blank: Before measuring your sample, always run a solvent blank in the selected cuvette. A stable and flat baseline at your target wavelength confirms the material's suitability.

Protocol 2: Nucleic Acid Quantification at 260 nm using Quartz Cuvettes

Purpose: To accurately determine the concentration and purity of a nucleic acid sample (DNA or RNA) by measuring its absorbance at 260 nm.

Principle: Nucleic acids absorb ultraviolet light maximally at 260 nm. The absorbance measured follows the Beer-Lambert law, allowing for concentration calculation. Using a quartz cuvette is mandatory for this UV application [12].

The Scientist's Toolkit: Reagents and Materials for Nucleic Acid Quantification

Item Function
UV-grade Quartz Cuvette (1 cm path length) Holds sample; transparent at 260 nm [12]
UV-Vis Spectrophotometer Instrument to measure light absorption
Purified Nucleic Acid Sample (DNA/RNA) The analyte of interest
TE Buffer or Nuclease-free Water Solvent for blank and sample dilution
Micropipettes and Sterile Tips For accurate and contamination-free liquid handling

Workflow:

  • Power On: Turn on the UV-Vis spectrophotometer and allow the lamp to warm up for the recommended time (typically 15-30 minutes).
  • Prepare Blank: Fill a quartz cuvette with the diluent used for your sample (e.g., TE buffer). This is your blank/reference.
  • Zero the Instrument: Place the blank cuvette in the sample holder and perform a blank measurement. This sets the 0.000 Abs baseline for the solvent and cuvette.
  • Prepare Sample: Dilute your nucleic acid sample with the same diluent. A typical dilution for DNA is 1:100 to bring the absorbance into the linear range of the instrument (0.1 - 1.0 AU).
  • Measure Absorbance: Pipette the diluted sample into a clean quartz cuvette, place it in the sample holder, and measure the absorbance at 260 nm (A260).
  • Calculate Concentration:
    • For double-stranded DNA: Concentration (ng/μL) = A260 × 50 × Dilution Factor
    • For single-stranded DNA or RNA: Concentration (ng/μL) = A260 × 40 × Dilution Factor
  • Assess Purity: Measure absorbance at 280 nm (A280) to calculate the A260/A280 ratio. Pure DNA typically has a ratio of ~1.8, while pure RNA is ~2.0.

G Nucleic Acid Quantification Workflow start Start Experiment power Power On Spectrometer start->power blank Prepare Blank (Quartz Cuvette + Buffer) power->blank zero Zero Instrument with Blank blank->zero prep Prepare Diluted Nucleic Acid Sample zero->prep measure Measure Sample Absorbance at 260 nm prep->measure calc Calculate Concentration measure->calc assess Assess Purity (A260/A280 Ratio) calc->assess end End assess->end

Cuvette Selection in the Context of Cuvette-Free Systems

The traditional paradigm of UV-Vis analysis requires a cuvette to present the sample to the light beam. However, cuvette-free systems represent a significant technological advancement, particularly for research involving precious, small-volume samples or turbid suspensions. These systems, such as the CLARiTY platform, utilize integrating cavities or micro-volume platforms that eliminate the need for a physical cuvette, thereby minimizing sample volume requirements and overcoming the challenge of light scattering in non-ideal samples [17] [18].

The choice between cuvette-based and cuvette-free systems hinges on the sample properties and analytical goals, as illustrated in the decision logic below.

G Cuvette vs. Cuvette-Free System Selection start Start: Analyze Sample decision1 Is the sample clear and non-scattering? start->decision1 use_cuvette Use Traditional Cuvette System decision1->use_cuvette Yes use_cuvette_free Use Cuvette-Free System (e.g., CLARiTY) decision1->use_cuvette_free No (Turbid/Suspension) decision2 Is sample volume limited (< 50 µL)? decision2->use_cuvette_free Yes (Very Limited Volume) select_material Proceed to Cuvette Material Selection decision2->select_material No (Sufficient Volume) use_cuvette->decision2

For cuvette-based analysis of small volumes, the selection path leads to the appropriate material. The key advantage of cuvette-free systems like the CLARiTY integrating cavity spectrophotometers is their ability to make accurate absorbance measurements even in turbid samples, such as nanoparticle suspensions or whole cells, where light scattering would render traditional cuvette measurements (reported as extinction) unreliable [17] [18]. This capability is crucial in fields like drug development, where accurately quantifying RNA concentration in lipid nanoparticles (LNPs) is essential, as demonstrated by Scatter-Free Absorption Spectroscopy (SFAS) [18]. Furthermore, these systems drastically reduce the required sample volume, conserving precious research materials.

Selecting the appropriate cuvette material is a foundational step in ensuring the accuracy and reliability of UV-Vis spectroscopic data. The choice is unequivocally dictated by the wavelength of light used in the analysis: quartz for UV and full-spectrum work, optical glass for visible and NIR applications, and disposable plastic for cost-effective, visible-light assays in non-corrosive solvents. As research progresses towards more complex samples, such as nanoparticle formulations in drug development, and a greater emphasis on miniaturization, the limitations of traditional cuvettes become apparent. The emergence of robust cuvette-free technologies offers a powerful alternative, enabling accurate analysis of scattering suspensions and vastly reducing sample consumption. A deep understanding of both traditional cuvette properties and modern cuvette-free capabilities empowers scientists to select the optimal tool for their specific research challenge.

Traditional UV-Vis spectrophotometry relies on cuvettes to hold liquid samples for analysis. These containers, while effective, require specific path lengths (typically 10 mm) and necessitate significant sample volumes, ranging from several milliliters for macro cuvettes down to 350 µL for sub-micro types [19] [12]. For valuable biological samples or limited reaction volumes, these requirements can be prohibitive. This application note details the operational principles of cuvette-free systems, which leverage surface tension for sample retention, automated pathlength selection, and microvolume analysis, thereby enabling accurate spectrophotometric measurements with sample volumes as low as 1 µL [20]. Framed within the broader comparison of cuvette versus cuvette-free systems, this document provides researchers and drug development professionals with the foundational knowledge and protocols to implement these advanced techniques.

Core Technology: Principles of Cuvette-Free Operation

Cuvette-free systems eliminate the need for traditional sample containment by using the intrinsic physical properties of the liquid sample itself.

Surface Tension-Based Sample Retention

The system employs a sample retention mechanism that relies on the natural surface tension properties of the sample liquid [20]. A small aliquot (e.g., 1-2 µL) is pipetted onto a lower optical surface. When an upper pedestal is brought into contact with the droplet, the liquid forms a stable column or liquid bridge between the two optical surfaces purely through surface tension, without the need for physical walls. This capillary action is a fundamental property of liquids and is highly reliable for aqueous solutions [21] [20]. Maintaining a hydrophobic, reconditioned surface on the measurement pedestals is critical for ensuring the sample beads up properly, preventing column breakage and ensuring measurement reproducibility [20].

Automated Pathlength Selection and Correction

In a traditional cuvette, the path length is fixed by the inner distance between its parallel windows (e.g., 10 mm) [19] [14]. Cuvette-free systems, however, do not have a fixed geometry. Instead, the instrument software automatically determines the actual path length for each individual measurement.

This is often achieved by exploiting the water peak absorbance of aqueous solutions. Pure water absorbs light characteristically between 930 and 1100 nm; the magnitude of this absorbance is directly related to the distance the light travels through the sample [22]. The instrument measures this absorbance and automatically normalizes the data to a standard 1-cm or 10-mm path length, allowing for direct comparison with cuvette-based measurements and standard extinction coefficients [22]. This automated correction compensates for variations in the actual liquid column height, ensuring data consistency.

Comparative Analysis: Cuvette-Based vs. Cuvette-Free Systems

The table below summarizes the key differences between the two methodologies, highlighting the advantages of cuvette-free systems for microvolume applications.

Table 1: Quantitative Comparison of Cuvette-Based and Cuvette-Free UV-Vis Systems

Feature Traditional Cuvette Systems Cuvette-Free Systems
Typical Sample Volume 3.5 mL (Standard) to 20-350 µL (Sub-Micro) [19] [12] 1-2 µL [20]
Effective Path Length Fixed (e.g., 1 mm, 10 mm, 100 mm) [19] [23] Automatically determined and corrected for each sample [22]
Sample Containment Physical vessel (cuvette) made of glass, quartz, or plastic [19] [12] Surface tension liquid column [20]
Concentration Range Limited by fixed path length; often requires sample dilution/concentration [23] Extremely broad (e.g., 1 pg/µL to 15,000 ng/µL for nucleic acids) [20]
Sample Preparation Requires pipetting into cuvette; risk of spills and cross-contamination Direct pipetting onto pedestal; minimal sample transfer
Cleaning Required Yes, between samples (unless using disposable cuvettes) Yes, pedestal surfaces must be cleaned between measurements [20]

Workflow Comparison

The fundamental operational differences between the two technologies are visualized in the following workflow diagrams.

G Cuvette-Based Analysis Workflow cluster_cuvette Cuvette-Based Workflow cluster_free Cuvette-Free Workflow Start1 Start Sample Analysis A1 Select Appropriate Cuvette Start1->A1 B1 Pipette Sample (350 µL - 3.5 mL) A1->B1 C1 Wipe Cuvette & Place in Holder B1->C1 D1 Measure Absorbance with Fixed Path Length C1->D1 E1 Clean/Dispose Cuvette D1->E1 Start2 Start Sample Analysis A2 Clean Pedestal Surfaces Start2->A2 B2 Pipette 1-2 µL Blank A2->B2 C2 Perform Blank Measurement B2->C2 D2 Pipette 1-2 µL Sample C2->D2 E2 Measure Absorbance with Automated Pathlength Correction D2->E2

Experimental Protocols

Protocol: Direct Absorbance Nucleic Acid Quantification Using a Cuvette-Free Spectrophotometer

This protocol is adapted for systems like the NanoDrop 2000c and enables the quantification and purity assessment of DNA or RNA using only 1 µL of sample [20].

Research Reagent Solutions & Essential Materials Table 2: Essential Materials for Nucleic Acid Quantification

Item Function / Specification
Cuvette-Free Spectrophotometer Instrument with upper and lower optical measurement pedestals.
Deionized Water High-purity water for cleaning optical surfaces.
Lint-Free Lab Wipes For drying and cleaning pedestals without leaving residue.
Calibrated Micropipette For accurate dispensing of 1-2 µL volumes.
Sample Buffer (e.g., TE) The buffer used to dilute or suspend the nucleic acid sample.

Methodology:

  • System Initialization: Power on the instrument and initialize the associated software. Select the "Nucleic Acid" application.
  • Pedestal Cleaning: Pipette 2-3 µL of deionized water onto the center of the lower optical pedestal. Close and then open the lever arm. Use a clean, lint-free lab wipe to thoroughly dry both the upper and lower pedestals.
  • Blank Measurement: Dispense 1 µL of the appropriate blanking buffer (e.g., TE buffer, nuclease-free water) onto the lower pedestal. Close the lever arm. Click "Blank" in the software. Once blanking is complete, open the arm and wipe the pedestals clean.
  • Sample Measurement: Dispense 1 µL of the nucleic acid sample onto the lower pedestal. Close the lever arm. The surface tension will form a stable liquid column.
  • Data Acquisition: Click "Measure" in the software. The instrument will automatically display the calculated nucleic acid concentration (using the specified constant, e.g., 50 for dsDNA) and purity ratios (A260/A280 and A260/A230).
  • Post-Measurement Cleaning: Wipe the pedestals clean with a lint-free lab wipe before measuring the next sample.

Protocol: High-Sensitivity dsDNA Quantitation via Fluorescence

For samples with very low concentrations (e.g., below the reliable detection limit of direct absorbance), a fluorescence-based method using a dye like PicoGreen is recommended [20].

Research Reagent Solutions & Essential Materials Table 3: Essential Materials for Fluorescence-based DNA Quantification

Item Function / Specification
Microvolume Fluorospectrometer Instrument capable of fluorescence measurements with microvolume sample retention.
PicoGreen dsDNA Quantitation Kit Provides the fluorescent dye, standards, and necessary buffers.
Nuclease-Free Tubes (Amber or Foil-Covered) To protect light-sensitive fluorescent reactions.
1x TE Buffer Dilution buffer for standards and samples.
Serially Diluted dsDNA Standards For generating a standard curve.

Methodology:

  • Reagent Preparation: Equilibrate all kit components and samples to room temperature. Prepare a 1x TE buffer by diluting the provided 20x TE buffer. Prepare the PicoGreen working solution according to the manufacturer's instructions.
  • Reaction Setup: In low-light conditions, prepare 10 µL reactions for standards and samples in amber or foil-wrapped tubes. For each, combine 5 µL of standard or unknown sample with 5 µL of the PicoGreen working solution. Mix by gentle pipetting and incubate at room temperature for 5 minutes.
  • Instrument Setup: Clean the pedestals as described in the absorbance protocol. Open the software and select the "Nucleic Acids" application, then the "PicoGreen-dsDNA" assay.
  • Blank and Standard Curve Measurement: Blank the instrument using 2 µL of 1x TE buffer. Then, measure 2 µL of the pre-prepared standard reactions to build a calibration curve. The software will typically average multiple replicates.
  • Sample Measurement: Once the standard curve is established, switch to the "Samples" tab. Measure 2 µL of each pre-prepared unknown sample reaction. The software will automatically calculate the dsDNA concentration based on the standard curve.

The Scientist's Toolkit: Key Considerations for Cuvette-Free Systems

Ensuring Optimal Performance and Avoiding Pitfalls

  • Pedestal Surface Condition: The hydrophobic nature of the pedestals is crucial for proper column formation. Avoid using detergents or isopropyl alcohol for cleaning, as they can "uncondition" the surfaces, leading to droplet flattening and column breakage [20]. If unconditioning occurs, use the manufacturer's recommended reconditioning compound to restore hydrophobicity.
  • Sample Homogeneity: Viscous or heterogeneous samples may not form a consistent liquid column, leading to irreproducible results. Ensure samples are properly mixed and homogeneous before measurement.
  • Spectral Quality Assessment: Always inspect the spectral output for abnormalities, such as shifts or elevated baseline, which can indicate contaminants like phenol, guanidine, or protein [20].

Cuvette-free microvolume systems represent a significant advancement in spectroscopic analysis for research and drug development. By replacing the physical cuvette with a surface tension-retained sample column and implementing automated pathlength correction, these systems overcome the major limitations of traditional methods: high sample volume requirements and limited dynamic range. The protocols outlined herein for nucleic acid quantification demonstrate the practicality, sensitivity, and efficiency of this technology. For laboratories working with precious or limited samples, integrating cuvette-free mechanics is not merely a convenience but a necessity for enhancing throughput, conserving valuable materials, and obtaining reliable data across an exceptionally wide concentration range.

In the fields of molecular biology, biochemistry, and pharmaceutical development, the accurate analysis of precious samples with limited volume is a fundamental requirement. Ultraviolet-Visible (UV-Vis) spectroscopy serves as a cornerstone technique for the quantification and qualification of biomolecules. This application note details the core technical specifications of UV-Vis systems, with a specific focus on the critical trade-offs between traditional cuvette-based instruments and modern cuvette-free (microvolume) systems. Understanding the relationship between wavelength range, pathlength, and minimum sample volume is essential for selecting the appropriate technology to maximize data reliability while conserving valuable samples, thereby accelerating research and development timelines [7] [24].

The following diagram outlines the primary decision-making workflow for selecting an appropriate UV-Vis system based on sample volume and experimental goals, which will be elaborated upon in the subsequent sections.

G Start Start: Sample Analysis Need A Sample Volume > 50 µL? Start->A B Consider Cuvette-Based System A->B Yes D Sample Volume < 5 µL? A->D No C Pathlength: 10 mm Wavelength: Per Material B->C G Requires High-Throughput? C->G E Choose Cuvette-Free System D->E Yes D->G No F Pathlength: 0.2-1 mm (Variable) Wavelength: 190-850 nm E->F F->G H Consider Microplate Reader G->H Yes

Core Technical Specifications

Wavelength Range

The wavelength range of a UV-Vis system determines the spectrum of light it can utilize to probe samples, directly impacting the types of analytes that can be detected and quantified. Different molecules absorb light at characteristic wavelengths; for instance, nucleic acids absorb maximally at 260 nm, proteins at 280 nm, and bacterial culture density is often measured at 600 nm (OD600) [7] [1]. The selection of cuvette material is critical for ensuring sufficient light transmission at the desired wavelengths. As shown in the table below, quartz is the most versatile material, essential for UV-range measurements, while plastic and glass are cost-effective alternatives for visible-light applications only [12] [16].

Table 1: Cuvette Material Transmission Ranges and Applications

Material Wavelength Range Transmission Rate Primary Applications
UV-Grade Quartz ~190 – 2500 nm [12] [16] ~83% at 220 nm [16] Nucleic acids, proteins, precise UV-Vis spectroscopy [12]
Optical Glass ~340 – 2500 nm [12] [16] ~82% at 350 nm [16] Colorimetric assays, visible light work, teaching labs [12]
Standard Plastic ~380 – 780 nm [12] ~80% at 400 nm [16] Educational use, bacterial OD measurements, protein assays (e.g., Bradford) [12]
IR Quartz ~220 – 3500 nm [16] ~88% at 2730 nm [16] Specialized mid-IR spectroscopy [12]
BI 224436BI 224436, CAS:1155419-89-8, MF:C27H26N2O4, MW:442.5 g/molChemical ReagentBench Chemicals
BI-882370BI-882370, CAS:1392429-79-6, MF:C28H33F2N7O2S, MW:569.7 g/molChemical ReagentBench Chemicals

Pathlength

The pathlength is the distance light travels through the sample, a key parameter in the Beer-Lambert law, which states that absorbance (A) is directly proportional to the pathlength (L) and the concentration (c) of the analyte (A = ε * c * L, where ε is the molar absorptivity) [1] [9]. A standard pathlength for cuvette-based measurements is 10 mm. However, for highly concentrated samples, a shorter pathlength (e.g., 1 mm) can be used to keep the absorbance within the instrument's optimal dynamic range (typically 0.1 to 1 AU) and avoid saturation [16] [9]. Cuvette-free systems ingeniously use a variable, sample-defined pathlength, often between 0.2 mm and 1 mm, enabling the measurement of highly concentrated samples without dilution [24].

Table 2: Pathlength and Volume Specifications Across Sample Holder Types

Sample Holder Type Standard Pathlength Minimum Sample Volume Key Volume & Pathlength Considerations
Macro Cuvette 10 mm [12] > 3.5 mL [12] Ideal for abundant samples; provides thermal stability.
Semi-Micro Cuvette 10 mm [16] ~ 0.7 mL (for a 2mm inner width) [16] Balances sample volume with pathlength requirements.
Micro Cuvette 10 mm, 2 mm, 1 mm [16] As low as 1-2 µL (with specialized cells) [7] Requires careful filling to ensure the light path is fully submerged.
Cuvette-Free Pedestal Variable (e.g., 0.2-1 mm) [24] 1-2 µL [7] [24] Pathlength is software-determined and concentration-dependent; no sample holder needed.
Microplate Defined by well volume As low as 10 µL per well [25] Pathlength is not fixed; requires careful liquid handling for accuracy [26].

Minimum Sample Volume

The minimum sample volume is a decisive factor in system selection, especially when samples are irreplaceable or scarce. Cuvette-based systems require sufficient volume to fill the optical chamber, typically ranging from 0.7 mL for semi-micro cuvettes down to ~50 µL for ultra-micro versions [11] [12]. In contrast, cuvette-free systems, which utilize surface tension to hold a sample between two optical pedestals, require only 1-2 µL and can measure highly concentrated samples without dilution, making them indispensable for modern molecular biology workflows involving nucleic acid and protein quantification [7] [24].

The Scientist's Toolkit: Essential Research Reagent Solutions

Successful UV-Vis analysis relies on more than just the instrument. The following table lists key reagents and materials essential for preparing and analyzing samples.

Table 3: Essential Reagents and Materials for UV-Vis Spectrophotometry

Item Function/Application Key Considerations
UV-Grade Quartz Cuvettes Holding samples for UV-range analysis (e.g., DNA/RNA at 260 nm) [12]. Essential for wavelengths below 300 nm; reusable but fragile and costly.
Disposable Plastic Cuvettes Holding samples for visible-range analysis (e.g., Bradford assay at 595 nm) [12]. Cost-effective, single-use; not compatible with UV light or many organic solvents.
Compatible Solvents (e.g., Water, Ethanol) Dissolving and diluting analytes [9]. Must be transparent at the measurement wavelength; solvent background absorbance must be accounted for with a blank.
Nucleic Acid Standards (e.g., λ-DNA) Calibrating instruments and creating quantification calibration curves. Provides a known reference to ensure concentration measurements are accurate.
Protein Assay Kits (e.g., BCA, Bradford) Colorimetric quantification of protein concentration via specific binding dyes [24]. Each assay has a specific optimal measurement wavelength (e.g., 562 nm for BCA, 595 nm for Bradford) [24].
Buffer Salts (e.g., Tris-EDTA, PBS) Providing a stable chemical environment for biological samples. The buffer should not absorb significantly at the wavelength of interest.
CC-90003CC-90003, MF:C22H21F3N6O2, MW:458.4 g/molChemical Reagent
CCG-222740CCG-222740, MF:C23H19ClF2N2O3, MW:444.9 g/molChemical Reagent

Experimental Protocols

Protocol 1: Microvolume Quantification of Nucleic Acids Using a Cuvette-Free System

This protocol is designed for the rapid quantification of DNA or RNA using a pedestal-based microvolume spectrophotometer, requiring only 1-2 µL of sample.

Workflow Overview:

G Start 1. System Initialization A 2. Blank Measurement Start->A B 3. Sample Application A->B C 4. Data Collection B->C D 5. Contamination Check C->D E 6. System Cleaning D->E

Step-by-Step Procedure:

  • System Initialization: Power on the instrument and the connected computer. Launch the control software. Select the appropriate application (e.g., "Nucleic Acid").
  • Blank Measurement: Clean the upper and lower optical pedestals with a lint-free tissue moistened with the solvent used for your sample (e.g., nuclease-free water or TE buffer). Pipette 1-2 µL of the blanking solution onto the lower pedestal. Close the sampling arm and initiate the blank measurement. The instrument will establish a baseline. Post-measurement, wipe both pedestals clean.
  • Sample Application: Gently vortex your nucleic acid sample. Using a calibrated pipette, carefully dispense 1-2 µL of the sample onto the center of the lower pedestal. Ensure the drop is cohesive.
  • Data Collection: Close the sampling arm. The instrument will automatically measure the absorbance and calculate the concentration (in ng/µL) and purity ratios (A260/A280 and A260/A230). The software will display the full spectral scan from 220 nm to 350 nm or wider [24].
  • Contamination Check & Data Interpretation: Examine the spectral profile and purity ratios. An A260/A280 ratio of ~1.8 indicates pure DNA, while ~2.0 indicates pure RNA. Significantly lower ratios suggest protein contamination (e.g., phenol). The A260/A230 ratio should be >2.0; lower values may indicate salt or solvent contamination. Advanced systems with sample intelligence software (e.g., Acclaro technology) can automatically flag and correct for common contaminants [24].
  • System Cleaning: Open the arm and thoroughly wipe both pedestals with a clean, lint-free tissue. Repeat the blanking step if analyzing multiple samples to ensure no carryover.

Protocol 2: Protein Concentration and Purity Analysis Using a Cuvette and Colorimetric Assay

This protocol uses the Bradford assay in a standard 10 mm pathlength cuvette to quantify protein concentration and assess purity based on the A260/A280 ratio.

Workflow Overview:

G Start 1. Reagent and Standard Prep A 2. Standard Curve Generation Start->A B 3. Unknown Sample Measurement A->B C 4. Data Analysis B->C D 5. Purity Assessment C->D

Step-by-Step Procedure:

  • Reagent and Standard Preparation: Prepare the Bradford reagent according to the manufacturer's instructions. Create a dilution series of a standard protein (e.g., Bovine Serum Albumin - BSA) in the same buffer as your unknown samples, covering a concentration range from 0 to 2000 µg/mL.
  • Standard Curve Generation: Pipette 1 mL of Bradford reagent into a series of clean plastic or glass cuvettes (plastic is sufficient for 595 nm). Add 10-50 µL of each BSA standard to the cuvettes and mix thoroughly by inverting. Incubate at room temperature for 5-15 minutes. Using the spectrophotometer, blank with a solution of reagent plus buffer. Measure the absorbance of each standard at 595 nm [24]. Plot the absorbance vs. concentration to create a standard curve.
  • Unknown Sample Measurement: Repeat the process in step 2 with your unknown protein samples, using the same volume and incubation time.
  • Data Analysis: Use the equation from the standard curve (or the instrument's built-in software) to calculate the concentration of your unknown samples based on their measured absorbance at 595 nm.
  • Purity Assessment (Optional): For a crude purity check, directly measure the absorbance of the undiluted protein sample in a quartz cuvette at 260 nm and 280 nm without Bradford reagent. Calculate the A260/A280 ratio. A ratio of ~0.6 is typical for pure protein, while a higher ratio indicates nucleic acid contamination [7].

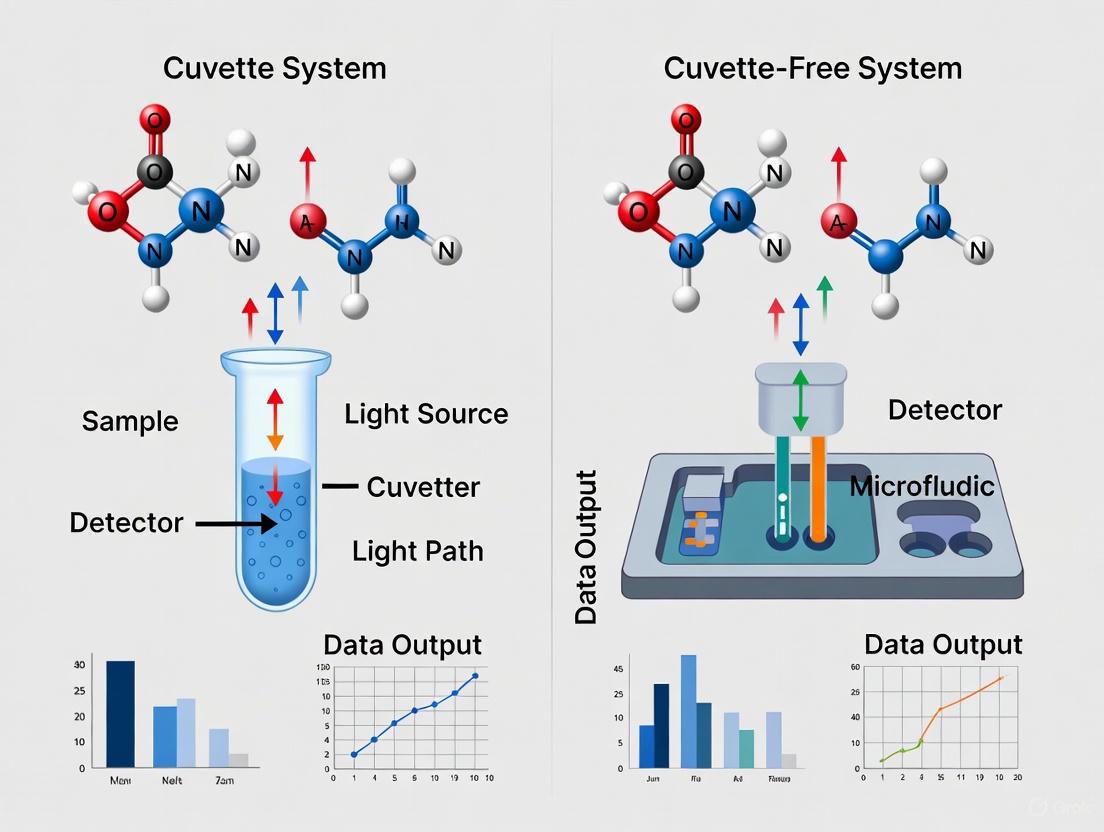

Comparative Analysis: Cuvette vs. Cuvette-Free Systems

The choice between cuvette and cuvette-free systems hinges on specific application requirements. The following diagram and table summarize the key differentiators to guide this decision.

G Cuvette Cuvette-Based Systems C1 Larger sample volume (~0.5 - 3.5 mL) Cuvette->C1 C2 Fixed pathlength (e.g., 10 mm) Cuvette->C2 C3 Requires consumables & cleaning Cuvette->C3 C4 Ideal for kinetics, temperature control Cuvette->C4 Free Cuvette-Free Systems F1 Minuscule sample volume (1-2 µL) Free->F1 F2 Variable pathlength (avoids dilution) Free->F2 F3 No consumables, minimal cleanup Free->F3 F4 Fast, dedicated measurements Free->F4

Table 4: System Selection Guide Based on Application Needs

Application Need Recommended System Rationale
High-Concentration DNA/RNA (limited vol.) Cuvette-Free Measures 1-2 µL directly without dilution; wide dynamic range [24].
Enzyme Kinetics / Temperature Studies Cuvette-Based (with stirrer/temp control) Accommodates accessories for mixing and temperature regulation [7].
High-Throughput Screening (96+ samples) Microplate Reader Simultaneously measures dozens of samples, maximizing efficiency [25] [26].
Teaching Labs / Routine Visible Assays Cuvette-Based (Plastic/Glass) Low consumable cost and sufficient for assays like Bradford or bacterial OD [12].
Broad-Spectrum Analysis (UV to IR) Cuvette-Based (Quz) Quartz cuvettes provide the broadest wavelength transparency [12] [16].

Optimizing Your Workflow: Key Applications for Cuvette and Cuvette-Free Systems

This application note details the superior performance of cuvette-free UV-Vis spectrophotometry for the quantification of nucleic acids and proteins using minimal sample volumes. Within a broader thesis comparing traditional cuvette-based and modern cuvette-free systems, we demonstrate that cuvette-free technology enables highly accurate and precise measurements with sample volumes as low as 0.5 µL, drastically reducing consumable costs and sample requirements. The data and protocols herein provide researchers and drug development professionals with a framework for implementing these efficient methodologies in their workflows.

Ultraviolet-Visible (UV-Vis) spectroscopy is a foundational technique for quantifying biomolecules such as proteins, DNA, and RNA, based on their specific absorption of light at 280 nm and 260 nm, respectively [27]. Traditional spectrophotometers rely on cuvettes—small containers with a fixed pathlength through which light passes. While effective, these systems require relatively large sample volumes, typically 50 µL to 4.5 mL, creating a bottleneck when sample material is precious or limited [28] [29].

Cuvette-free systems represent a paradigm shift by eliminating the traditional sample container. Instead, they utilize unique microfluidic circuits or surface tension to hold a tiny droplet of sample between two optical surfaces for analysis [27] [5]. This technical innovation directly addresses the growing need for high-throughput analysis of small-volume samples in modern biopharmaceutical and academic research. This document provides application-specific data and detailed protocols to showcase the advantages of cuvette-free systems for critical laboratory tasks.

Performance Data: Quantitative Comparison

The following tables summarize key performance metrics for leading cuvette-free systems and a comparison with traditional cuvette-based alternatives.

Table 1: Performance Specifications of Cuvette-Free UV-Vis Systems

Instrument / System Minimum Sample Volume Dynamic Range Accuracy & Precision Key Application Features
Unchained Labs Lunatic/Stunner [27] 2 µL 0.03 - 275 OD (Nucleic acids: 1.5 - 13,750 ng/µL; IgG: 0.02 - 200 mg/mL) Accuracy within 2%, Precision within 1% of NIST RMs High-throughput (96 samples in 10 min); fixed 0.1 mm and 0.7 mm pathlength microcuvettes in a circuit.
Molecular Devices SpectraMax QuickDrop [5] 0.5 µL Not specified in detail; full-spectrum UV-Vis Maintains accurate pathlength; no calibration required Standalone touchscreen; 4-second read time; built-in port for both micro-volume and traditional cuvettes.
Eppendorf UVette (Traditional Cuvette) [28] 50 µL Dependent on spectrophotometer PCR-clean, protein-free Disposable; dual 10 mm & 2 mm pathlengths by rotation; typical of conventional cuvette-based workflows.

Table 2: Cuvette-Based vs. Cuvette-Free System Comparison

Parameter Traditional Cuvette Systems Cuvette-Free Systems
Typical Sample Volume 50 µL - 4.5 mL [28] [29] 0.5 - 2 µL [27] [5]
Pathlength Fixed standard (e.g., 10 mm) or adjustable via different cuvettes [30] Fixed, short pathlengths (e.g., 0.1 mm, 0.7 mm) enabling high-concentration analysis without dilution [27]
Risk of Contamination Requires cleaning between samples or use of disposables, posing a risk [31] Single-use, sealed microfluidic circuits eliminate cross-contamination and evaporation [27]
Throughput Typically single-sample measurement High-throughput; 96 samples per run [27]
Consumable Cost Recurring cost for disposable cuvettes or cleaning labor Cost associated with proprietary microfluidic plates or no consumables

Application Notes & Experimental Protocols

Nucleic Acid Quantification (dsDNA) with a Cuvette-Free System

Principle: Double-stranded DNA (dsDNA) has a maximum absorbance at 260 nm. The A260 measurement is used to calculate concentration, while the A260/A280 ratio assesses purity, with a pure DNA sample having a ratio of ~1.8 [27] [1].

Protocol:

  • Instrument Power-Up: Initialize the cuvette-free spectrophotometer (e.g., SpectraMax QuickDrop, Lunatic). Allow the lamp to stabilize as per the manufacturer's instructions.
  • Blank Measurement: Using the instrument software, select the nucleic acid application. Pipette 1-2 µL of the elution buffer (e.g., TE buffer or nuclease-free water) onto the measurement surface. Perform the blank measurement to establish a baseline [27] [5].
  • Sample Measurement: Wipe the measurement surface clean with a lint-free lab wipe. Apply 1-2 µL of the purified dsDNA sample to the surface. Initiate the measurement. The instrument will measure the absorbance at 260 nm and 280 nm, and others if specified.
  • Data Analysis: The instrument's software will automatically calculate and display:
    • Sample Concentration (ng/µL): Calculated using the Beer-Lambert law (A = εbc), where the extinction coefficient for dsDNA is typically 50 µg/mL per OD for a 10 mm pathlength, adjusted for the system's inherent pathlength.
    • Purity Ratio (A260/A280): A value between 1.8 and 2.0 indicates minimal protein contamination.

Workflow Overview:

G Start Start Nucleic Acid QC Init Initialize Instrument Start->Init Blank Apply 2 µL Blank Buffer Measure Baseline Init->Blank Clean Wipe Surface Clean Blank->Clean Sample Apply 2 µL DNA Sample Initiate Measurement Clean->Sample Analysis Automated Analysis: - A260 Concentration - A260/A280 Purity Sample->Analysis End Result Validation Analysis->End

Protein Quantification (IgG) with a Cuvette-Free System

Principle: Proteins absorb UV light primarily due to tryptophan and tyrosine residues, with a peak at 280 nm. The A280 measurement is used for direct quantification of purified proteins [27].

Protocol:

  • Blank with Solvent: Select the protein application on the instrument. Use the protein's storage buffer as the blank. For the Lunatic system, this blank is part of the plate-based workflow [27].
  • Sample Loading: For a standalone instrument, load 0.5-2 µL of the purified protein sample (e.g., IgG antibody). For a high-throughput system, load samples into the designated wells of the microplate.
  • Initiate Run: Start the measurement sequence. The system will measure the full spectrum or the specific absorbance at 280 nm.
  • Data Analysis: The software calculates the protein concentration using the known or estimated extinction coefficient for the specific protein (e.g., for IgG, the standard coefficient is 1.4 for a 1 mg/mL solution in a 10 mm pathlength, adjusted for the system).

Experimental Pathway:

G PStart Start Protein Quantification PBlank Load Blank Buffer (Protein Storage Buffer) PStart->PBlank PLoad Load 2 µL Protein Sample (IgG Antibody) PBlank->PLoad PRun Initiate UV Measurement Detect A280 Absorbance PLoad->PRun PCalc Software Calculation: Uses Extinction Coefficient and Pathlength PRun->PCalc PEnd Obtain Concentration (mg/mL) PCalc->PEnd

The Scientist's Toolkit: Essential Research Reagent Solutions

Table 3: Key Materials and Reagents for Cuvette-Free Analysis

Item Function / Description Example Use Case
Nuclease-Free Water [1] A pure solvent free of nucleases, used to dilute samples or as a blank for nucleic acid quantification. Serves as the blank measurement for DNA/RNA quantification to establish a clean baseline.
TE Buffer (Tris-EDTA) [1] A common elution and storage buffer for nucleic acids; used as the blank when measuring DNA/RNA dissolved in TE. Ensures the blank perfectly matches the sample matrix, eliminating buffer background from the measurement.
Compatible Microfluidic Plates [27] Proprietary consumables for high-throughput systems; contain fixed pathlength microcuvettes in a circuit. Enables automated, high-throughput quantification of 96 protein or nucleic acid samples in a single run.
NIST Traceable Standards [27] Certified reference materials (e.g., NISTmAb) used to validate instrument accuracy and precision. Critical for quality control in regulated environments (e.g., pharma) to ensure data compliance with USP/Ph. Eur. guidelines.
Lint-Free Lab Wipes Essential for cleaning the measurement surface of standalone instruments without introducing fibers. Prevents contamination and light scattering artifacts between sample measurements on a droplet-based system.
Mps1-IN-7Mps1-IN-7, MF:C24H29N7O, MW:431.5 g/molChemical Reagent
MCC950 sodiumMCC950 sodium, CAS:256373-96-3, MF:C20H23N2NaO5S, MW:426.5 g/molChemical Reagent

Cuvette-free UV-Vis spectrophotometry has firmly established itself as the superior method for the quantification of nucleic acids and proteins in scenarios where sample volume, throughput, and data accuracy are paramount. The ability to perform full-spectrum analysis with 2 µL or less, with accuracy traceable to NIST standards, eliminates the need for tedious dilutions and reduces consumable costs and waste [27]. As the field of drug development continues to demand faster and more efficient analytical workflows, the adoption of these cuvette-free systems represents a critical step forward, enabling researchers to maximize the value of precious samples while generating highly reliable data for critical decision-making.

In the context of comparing cuvette-based and cuvette-free UV-Vis systems for small sample volume research, it is crucial to recognize that while microvolume platforms excel at routine nucleic acid and protein quantification, traditional cuvettes maintain distinct and irreplaceable advantages in specific experimental scenarios. Cuvette-free systems, which often use a 1 µL droplet held by surface tension, provide exceptional convenience for sample-limited applications and high-concentration analytes [2]. However, their open architecture and fixed, ultra-short pathlength render them unsuitable for several critical applications. This application note details three key experimental areas—handling volatile solvents, conducting kinetic assays, and performing OD600 measurements—where the physical properties and defined geometry of cuvettes are indispensable for generating accurate, reproducible data.

Table 1: Comparison of Cuvette-Based vs. Cuvette-Free UV-Vis Systems

Application Feature Cuvette-Based Systems Cuvette-Free (Microvolume) Systems
Typical Sample Volume 50 µL to 3.5 mL (standard cells) [12] 1 µL [2]
Pathlength Fixed, user-selected (e.g., 1, 10, 50 mm) [32] Automatically selected or very short (e.g., 0.2-1 mm) [2]
Sample Containment Enclosed vessel, often sealable [33] Open droplet
Ideal for Volatile Solvents Yes (slows evaporation) [2] No (rapid evaporation)
Suitability for Kinetic Assays Excellent (stable, temperature-controllable) [2] Poor
OD600 Measurements Standard (10 mm pathlength) [2] Not applicable

Key Applications Mandating Cuvette Use

Volatile Solvents

The enclosed nature of a cuvette is critical for analyzing samples dissolved in volatile organic solvents such as acetone, chloroform, or ethanol.

  • Mechanism of Advantage: A sealed cuvette vessel significantly slows the evaporation of the solvent, which is a primary challenge in open microvolume systems [2]. This preservation of sample volume is essential for maintaining accurate analyte concentration throughout the measurement process.
  • Material Compatibility: For these applications, quartz cuettes are the gold standard due to their excellent chemical resistance against a wide range of organic solvents, acids, and bases [32] [12]. Standard plastic cuvettes must be avoided as many organic solvents can dissolve or craze the plastic material [12].
  • Practical Implementation: Using cuettes with screw caps or Teflon lids provides an effective seal against evaporation, making them ideal for prolonged measurements or when analyzing multiple samples in sequence [32] [33].

Kinetic Assays

Monitoring changes in absorbance over time, as required in enzyme kinetics or chemical reaction studies, is a fundamental application for cuvette-based systems.

  • Stability and Control: The larger volume and sealed environment of a cuvette provide a stable, controlled system that is not susceptible to ambient airflow or droplet deformation, which can plague open microvolume setups [2].
  • Extended Monitoring: Cuvettes enable researchers to track absorbance continuously over minutes to hours, which is essential for establishing initial reaction velocities and enzyme activity [2].
  • Advanced Integration: Cuvette holders can be integrated with Peltier temperature controllers and magnetic stirrers [32]. This allows for precise thermal management and continuous mixing during the reaction, ensuring homogeneous conditions and obtaining physiologically relevant kinetic data.

OD600 Measurements for Microbial Growth

Optical density at 600 nm (OD600) is a standard method for estimating microbial cell density in liquid cultures, and this measurement fundamentally relies on the use of cuvettes.

  • Pathlength Dependency: OD600 measurements are based on light scattering by cells, and the recorded value is directly proportional to the pathlength of the light through the sample [2]. The standardized 10 mm pathlength of a standard cuvette ensures that measurements are consistent and comparable across experiments and laboratories [2].
  • Standardization: The use of a cuvette with a defined geometry is critical for maintaining this standardization. The larger sample volume also provides a more representative aliquot of the culture, minimizing sampling error.

Table 2: Cuvette Selection Guide for Key Applications

Application Recommended Cuvette Type Ideal Pathlength Critical Features
Volatile Solvents Quartz, sealed [2] [12] 10 mm Screw cap or Teflon lid; High chemical resistance
Enzyme Kinetic Assays Quartz or Glass (depending on wavelength) [2] 10 mm Temperature control; Stirring capability
OD600 Measurements Glass or Disposable Plastic [12] 10 mm (standard) Standard 12.5 mm exterior; Good visible light transmission

Experimental Protocols

Protocol: Conducting an Enzyme Kinetic Assay Using a Cuvette

This protocol outlines the steps for measuring enzyme kinetics by monitoring the change in absorbance of a substrate or product over time.

Research Reagent Solutions

Item Function
Quartz Cuvette (10 mm pathlength) Holds reaction mixture; transparent in UV-Vis range [32] [12].
Buffer Solution (e.g., PBS) Provides stable pH and ionic environment for the reaction.
Enzyme Solution The catalyst whose activity is being measured.
Substrate Solution The molecule upon which the enzyme acts.
UV-Vis Spectrophotometer Instrument to measure absorbance at specific wavelength.
Cuvette Holder with Peltier Control Maintains constant temperature [32].
Magnetic Stirrer (optional) Ensures reaction mixture homogeneity [33].
  • Instrument Setup: Turn on the spectrophotometer and allow the lamp to warm up. Set the instrument to kinetics mode and select the wavelength for monitoring (e.g., 410 nm for PNPP converted to pNP). Configure the temperature controller to the desired temperature (e.g., 37°C) and allow the cuvette holder to equilibrate [32].
  • Reaction Mixture Preparation: In the cuvette, add the appropriate volume of buffer and substrate. Cap the cuvette, place it in the temperature-controlled holder, and allow it to incubate until the temperature has stabilized.
  • Baseline Acquisition: Initiate a short measurement to record the baseline absorbance of the reaction mixture without the enzyme.
  • Reaction Initiation: Remove the cuvette from the holder and quickly add a small, precise volume of the enzyme solution. Cap the cuvette, gently invert to mix, or use an integrated stirrer. Place it back into the holder immediately. Note: For rapid reactions, use a cuvette with a stirrer for immediate mixing.
  • Data Collection: Start the kinetic measurement immediately upon replacing the cuvette. The instrument will record the absorbance at set time intervals for the duration of the experiment.
  • Data Analysis: Plot absorbance versus time. The initial linear portion of the curve represents the initial velocity (Vâ‚€) of the reaction.

Protocol: Measuring OD600 of a Bacterial Culture

This method describes the standard procedure for determining the optical density of a bacterial culture to estimate cell density.

  • Blank Preparation: Fill a clean cuvette (glass or plastic for visible light) with the sterile culture medium (e.g., LB broth). This serves as the blank to calibrate the instrument [1].
  • Instrument Calibration: Wipe the outside of the cuvette with a lint-free tissue. Place the blank cuvette in the spectrophotometer sample holder and set the instrument to measure absorbance at 600 nm. Calibrate to zero absorbance (100% transmittance) using the blank [1].
  • Sample Measurement: Gently mix the bacterial culture to ensure a uniform suspension. Pipette an aliquot of the culture into a new clean cuvette, wipe the exterior, and place it in the sample holder.
  • Data Recording: Record the absorbance value. An OD600 of 1.0 is generally considered a standard reference point, though the exact relationship between OD600 and cell count must be empirically determined for each organism.

The workflow below summarizes the decision process for selecting between cuvette and cuvette-free methods based on sample properties and experimental goals.

G Start Start: UV-Vis Measurement Required Volatile Sample in volatile solvent? Start->Volatile Kinetic Kinetic assay or continuous monitoring? Volatile->Kinetic No UseCuvette Use Cuvette-Based System Volatile->UseCuvette Yes OD600 OD600 or other light scattering? Kinetic->OD600 No Kinetic->UseCuvette Yes OD600->UseCuvette Yes CheckVolume Sample volume < 50 µL and high concentration? OD600->CheckVolume No End End CheckVolume->UseCuvette No UseCuvetteFree Use Cuvette-Free (Microvolume) System CheckVolume->UseCuvetteFree Yes

The Scientist's Toolkit: Essential Materials and Equipment

Successful experimentation requires the correct selection of cuvettes and accessories tailored to the application.

Table 3: Essential Cuvette and Accessory Solutions

Tool/Reagent Specification/Type Primary Function & Application
Quartz Cuvette 10 mm pathlength, 190-2500 nm range [12] High-precision UV measurements; Kinetic assays with UV substrates; Use with volatile or corrosive solvents [32].
Optical Glass Cuvette 10 mm pathlength, 340-2500 nm range [12] Cost-effective choice for visible light applications; OD600 measurements; Colorimetric assays (e.g., BCA, Bradford) [12].
Sealed Cuvette With screw cap or Teflon lid [32] Prevents evaporation of volatile solvents (e.g., acetone, chloroform); Essential for anaerobic experiments [2] [33].
Stirring Cuvette Integrated magnetic stirrer [33] Maintains sample homogeneity during kinetic assays; Ensures uniform temperature and reactant mixing.
Peltier Cuvette Holder Temperature-controlled holder [32] Maintains constant temperature for kinetic studies and temperature-sensitive reactions.
Long Pathlength Cuvette 50 mm or 100 mm pathlength [32] Increases sensitivity for detecting trace analytes in environmental samples.
Micro-Volume Adapter For standard cuvettes Reduces required sample volume for precious samples while maintaining benefits of a sealed cuvette.
CP-690550ACP-690550A, CAS:1243290-37-0, MF:C15H21N5O2, MW:303.36 g/molChemical Reagent
CRT0105950CRT0105950, MF:C21H16ClN3OS, MW:393.9 g/molChemical Reagent

Within a research paradigm that often prioritizes small volumes, the data presented here affirm that cuvettes are not obsolete but are, in fact, essential for a well-equipped laboratory. Their sealed containment is critical for volatile solvents, their stable geometry is necessary for standardized OD600 measurements, and their compatibility with temperature control and stirring makes them the system of choice for rigorous kinetic assays. A strategic approach to UV-Vis spectroscopy involves maintaining both cuvette-based and cuvette-free capabilities, selecting the technology based on the specific physical and chemical demands of the experiment at hand.

In UV-Vis spectroscopy, the interaction between your sample solvent and measurement system is not merely a procedural detail—it fundamentally influences data integrity, measurement accuracy, and analytical outcomes. This relationship becomes particularly crucial when working with small sample volumes, where evaporation and meniscus effects are magnified. The choice between cuvette and cuvette-free systems extends beyond volume requirements to encompass chemical compatibility, with implications for workflow efficiency in research and drug development. Organic solvents, with their volatile nature and potential for material degradation, present distinct challenges compared to benign aqueous solutions. Similarly, sample composition—from simple small molecules to complex biological mixtures containing proteins or nucleic acids—can dictate the optimal measurement platform. This guide provides a structured framework for evaluating solvent and sample properties to ensure reliable spectroscopic analysis, presenting both decision frameworks and practical protocols for researchers navigating the interface of chemistry and analytical instrumentation.

Understanding Solvent and Sample Properties

Aqueous vs. Organic Solvents: Fundamental Differences

The distinction between aqueous and organic solvents lies at the heart of compatibility decisions. Aqueous solutions, primarily water-based, are characterized by high surface tension, low volatility, and general chemical inertness toward container materials. These properties make them amenable to both traditional cuvettes and modern cuvette-free microvolume systems. Surface tension is particularly advantageous in microvolume measurements, where it enables the formation of a stable liquid column between optical surfaces without physical containment [34].

In contrast, organic solvents (e.g., acetone, chloroform, ethanol) exhibit diverse chemical behaviors including higher volatility, lower surface tension, and potentially aggressive effects on measurement components. These properties necessitate careful system selection:

  • Volatility: Rapid evaporation risk is significant in open microvolume systems, leading to concentration changes and measurement artifacts during analysis [34].
  • Material Compatibility: Solvents can dissolve, craze, or otherwise degrade plastics and certain sealants used in some cuvettes and instrument components [12] [35].
  • Safety Considerations: Many organic solvents require ventilation due to fumes and present flammability hazards during handling.

Sample Composition Considerations

Beyond the solvent, the analyte itself influences method selection:

  • Nucleic Acids and Proteins: These biomolecules are typically analyzed in aqueous buffers, making them ideal candidates for microvolume analysis, which conserves precious samples [34].
  • Chemical Reactivity and pH: Samples in extreme pH conditions or containing reactive species may interact with measurement surfaces, potentially causing corrosion or carryover contamination between measurements.
  • Light-Scattering Samples: Bacterial cultures or particulate suspensions require specific measurement approaches. Traditional cuvettes with a standard 10 mm pathlength are often preferred for optical density (OD) measurements such as OD600 for microbial growth assessment [34].

Cuvette-Based Analysis: Materials, Compatibility, and Protocols

Cuvette Material Properties and Chemical Resistance

The material of construction is the primary factor determining a cuvette's suitability for different solvents. The following table summarizes key properties of common cuvette materials:

Table 1: Cuvette Materials: Spectral Ranges and Chemical Compatibility

Material Wavelength Range Aqueous Solutions Organic Solvents Strong Acids/Bases Key Applications
Optical Glass ~340–2500 nm [12] Excellent Good (avoid sustained exposure) [12] Good Colorimetric assays, teaching labs [12]
UV-Grade Quartz ~190–2500 nm [12] [36] Excellent Excellent [36] Excellent [36] UV-Vis spectroscopy, nucleic acid/protein quantification [12]
Standard Plastic (PMMA/PS) ~380–780 nm [12] [37] Excellent Poor (can dissolve/craze) [12] [35] Fair Educational experiments, visible light colorimetry [12]
UV-Transparent Plastic ~220–900 nm [12] Excellent Variable/Poor Fair Disposable UV work when quartz is unavailable [12]

Experimental Protocol: Cuvette-Based Measurement for Organic Solvents

This protocol is designed for the safe and accurate UV-Vis analysis of samples dissolved in organic solvents using quartz cuvettes.

I. Research Reagent Solutions

Table 2: Essential Materials for Cuvette-Based Solvent Analysis

Item Function Compatibility Note
Quartz Cuvettes (e.g., 10 mm path length) Holds sample; transparent from UV to NIR [12] [36] Essential for UV measurements and organic solvent resistance [36].
Sealed Cuvette Caps/Lids Prevents evaporation of volatile solvents [34] Critical for signal stability with solvents like acetone or methanol.
Glass or PTFE Syringes/Pipettes For sample handling Prevents interaction between organic solvents and plastic components.
High-Purity Solvent Blank/reference solution Must be identical to sample solvent but without the analyte.
Lint-Free Wipes (e.g., Kimwipes) Cleaning cuvette exterior Ensures clear optical surfaces without scratches.
Nitrile Gloves Personal protection Protects user and prevents fingerprint contamination on optical surfaces.

II. Step-by-Step Workflow

  • Preparation and Blank Measurement:

    • Select a quartz cuvette compatible with your solvent [36].
    • Fill the cuvette with the pure organic solvent to be used as the blank. Avoid overfilling.
    • Securely cap the cuvette to minimize evaporation [34].
    • Gently wipe the exterior with a lint-free wipe to remove any fingerprints or droplets.
    • Place the cuvette in the spectrophotometer and run the blank measurement to establish a baseline.

  • Sample Measurement:

    • Carefully empty the cuvette.
    • Rinse the cuvette twice with a small amount of your sample solution to condition the environment.
    • Fill the cuvette with the sample solution and cap it securely.
    • Wipe the exterior clean and place it in the instrument.
    • Perform the absorbance measurement promptly to reduce evaporation-related errors.

  • Post-Measurement Cleaning:

    • Immediately after measurement, empty the cuvette and rinse it thoroughly with a compatible, volatile solvent (e.g., ethanol for many organics), followed by air-drying [36].
    • For complete cleaning, use a sequence of rinses appropriate for the sample's solubility.
    • Store cuvettes clean and dry in a protective container to prevent dust accumulation or damage.

Cuvette-Free (Microvolume) Analysis: Advantages and Limitations

The Microvolume Measurement Principle

Cuvette-free systems, such as microvolume spectrophotometers, operate by surface tension to hold a small droplet (e.g., 1 µL) between two optical surfaces, forming a liquid column with a fixed, short pathlength for measurement [34]. This approach eliminates the need for physical containment and enables direct, highly sensitive analysis of minute samples.

Solvent Compatibility in Microvolume Systems

The open-drop architecture of these systems makes them highly susceptible to solvent volatility. The following decision diagram illustrates the compatibility of different sample types with cuvette and cuvette-free systems:

G Start Start: Evaluate Sample SolventType What is the primary solvent? Start->SolventType Aqueous Aqueous SolventType->Aqueous Aqueous Buffer/Water Organic Organic SolventType->Organic Organic Solvent (e.g., Acetone, Methanol) SampleVolumeAq Available sample volume? Aqueous->SampleVolumeAq CuvetteOrg Use Quartz Cuvette (Organic Solvent) Organic->CuvetteOrg Use Cuvette (Sealed System) Microvolume Use Cuvette-Free (Microvolume Mode) SampleVolumeAq->Microvolume Limited (e.g., < 5 µL) High Concentration CuvetteAq Use Cuvette (Aqueous Solution) SampleVolumeAq->CuvetteAq Abundant (e.g., > 50 µL) Low Concentration Benefits1 Key Benefit: - Sample Conservation (uses 1 µL) - No dilution required - Fast cleanup Microvolume->Benefits1 Benefits2 Key Benefit: - Stable, controlled environment - Suitable for low conc. - Kinetic assays CuvetteAq->Benefits2 Benefits3 Key Benefit: - Prevents evaporation - Chemical resistance - Accurate long-term measurement CuvetteOrg->Benefits3

Figure 1: Decision Workflow for Cuvette vs. Cuvette-Free System Selection

Experimental Protocol: Microvolume Analysis of Aqueous Samples

This protocol is optimized for measuring small-volume aqueous samples, such as nucleic acids or proteins, on a cuvette-free spectrophotometer.

I. Research Reagent Solutions

Table 3: Essential Materials for Cuvette-Free Microvolume Analysis

Item Function Note
Microvolume Spectrophotometer Measures 0.5-2 µL samples without cuvettes Instruments like DeNovix DS-Series or similar [34].
High-Purity Water/Buffer Blank solution and surface cleaning Use the same buffer as the sample for the blank.
Disposable Pipette Tips Sample loading and handling Use calibrated tips for accurate 1 µL dispensing.
Lint-Free Lab Wipes Cleaning measurement surfaces Essential for removing sample residue between measurements.

II. Step-by-Step Workflow

  • System Initialization and Blanking:

    • Power on the instrument and initialize the software.
    • Clean both the upper and lower measurement pedestals with a dry, lint-free wipe.
    • Apply 1 µL of the appropriate blank solution (e.g., TE buffer for DNA) to the lower measurement surface.
    • Lower the sampling arm to form the liquid column and perform the blank measurement.
    • After measurement, raise the arm and wipe both surfaces clean and dry [34].

  • Sample Measurement:

    • Deposit 1 µL of your sample onto the clean lower pedestal.
    • Close the sampling arm to initiate the measurement. The instrument's software will automatically collect and display the absorbance data.
    • For samples with very high concentration, advanced instruments like the DS-Series use technologies such as SmartPath to automatically adjust the pathlength and extend the dynamic range without requiring dilution [34].

  • Post-Measurement Cleanup:

    • Raise the sampling arm immediately after measurement.
    • Thoroughly wipe both optical surfaces with a clean, dry, lint-free lab wipe to prevent sample carryover [34].
    • Verify that surfaces are clean before proceeding to the next sample.

System Selection Guide

The choice between cuvette and cuvette-free systems represents a trade-off between sample conservation and solvent versatility. The following table provides a direct comparison to guide this decision:

Table 4: Cuvette vs. Cuvette-Free Systems: A Comparative Summary

Parameter Cuvette-Based Systems Cuvette-Free (Microvolume) Systems
Typical Sample Volume 50 µL to 3.5 mL (semi-micro to macro) [12] 1–2 µL [34]
Ideal Solvent Types Aqueous, Organic, Volatile, Corrosive [34] [36] Aqueous solutions only [34]
Pathlength Fixed (e.g., 10 mm) or variable via different cuvettes Automatically adjusted or fixed short pathlength (e.g., 0.2-1 mm)
Evaporation Control Excellent (with sealing caps) [34] Poor for volatile solvents [34]
Key Advantages - Superior solvent compatibility [34]- Suitable for kinetic assays [34]- Ideal for OD600 measurements [34] - Maximizes sample conservation [34]- Eliminates dilution steps [34]- Rapid analysis and easy cleanup [34]
Primary Limitations - Larger sample consumption- Requires cleaning/replacement - Not suitable for organic or volatile solvents [34]- Limited to high-concentration samples

Concluding Recommendations

Selecting the appropriate UV-Vis measurement system hinges on a critical evaluation of both solvent properties and sample characteristics. For the drug development professional and research scientist, the following guidelines ensure data integrity:

  • For Aqueous Solutions with Limited Volume: Cuvette-free microvolume systems are unequivocally superior, offering unparalleled sample conservation and workflow efficiency for nucleic acid quantification, protein analysis, and other biomolecular applications in aqueous buffers [34].
  • For Organic or Volatile Solvents: Traditional cuvette-based systems, specifically using quartz cuvettes, remain the gold standard. Their sealed environment prevents evaporation and ensures measurement stability, making them indispensable for chemical research involving organic solvents [34] [36].
  • For Complex or Specialized Assays: Cuvettes are required for kinetic studies, light-scattering measurements like OD600, and any application involving aggressive chemicals, volatile solvents, or extreme pH conditions [34].

By aligning your solvent compatibility knowledge with these structured protocols and selection guidelines, you can optimize your UV-Vis analytical workflows for both reliability and efficiency, ensuring the generation of high-quality, reproducible data in your research.

In the pursuit of novel therapeutics, drug development workflows increasingly rely on high-throughput screening (HTS) approaches that can analyze thousands of samples daily [38]. The "design, make, test, analyze" cycle in biomedical research has seen significant acceleration in the "make" phase through automated protein purification and synthesis platforms [39]. However, a critical analytical bottleneck often emerges at the characterization stage, particularly when traditional analysis methods struggle to accommodate the small volumes and high concentrations typical of spin column elutions and other miniaturized purification formats.

This application note addresses this fundamental challenge by presenting integrated workflows that bridge the gap between small-scale purification and high-throughput analysis. Specifically, we focus on the context of cuvette versus cuvette-free UV-Vis systems for analyzing limited sample volumes—a decision point that significantly impacts data quality, sample conservation, and overall workflow efficiency in drug development pipelines. As researchers process hundreds to thousands of protein variants or drug candidates, the analytical methodology must evolve from traditional approaches to innovative solutions that maintain data integrity while dramatically increasing throughput.

High-Throughput Purification Landscape

Comparative Purification Platforms

The transition from traditional protein purification methods to high-throughput alternatives has revolutionized early-stage drug discovery. Where researchers previously purified 5-10 proteins per week through labor-intensive methods, modern approaches can process thousands of samples in similar timeframes [39]. The table below summarizes key small-scale purification formats and their characteristics:

Table 1: Comparison of Small-Scale Purification Formats [40]

Format Throughput Processing Time Elution Volume Key Advantages Limitations
Spin Columns ~96 proteins/day >60 minutes ~150 µL (3×50 µL) Simple equipment requirements Difficult to automate, sample dilution
Magnetic Beads ~100 proteins/day >60 minutes ~100 µL High selectivity, simple equipment Lower capacity, requires specific instrumentation
Tip-Based Formats 9,216 purifications/day 10-30 minutes ~400 µL Automation-friendly, high throughput Requires liquid handling robotics
Plate-Based Formats Similar to tip-based Variable ~600 µL (3×200 µL) High-throughput potential Complex automation, sample dilution
PhyTip Columns 96 samples/15 minutes ~15 minutes ~120 µL Small elution volumes, high concentration Specialized equipment required

Impact of Elution Volume on Downstream Analysis

The choice of purification method directly influences downstream analytical capabilities through its determination of final sample volume and concentration. Traditional spin columns typically yield elution volumes of 150µL (in three 50µL fractions) [40], while modern tip-based systems like PhyTip columns can concentrate samples into just 120µL [40]. This 20% reduction in volume translates to higher analyte concentrations, significantly improving detection limits in subsequent characterization steps.

The concentration effect becomes particularly important when analyzing proteins at low concentrations. As demonstrated in a case study, PhyTip technology achieved approximately 4-fold higher concentration compared to spin columns and 25-fold higher concentration compared to magnetic beads when purifying HIS-tagged samples [40]. This enhanced concentration directly enables more reliable downstream analysis, especially when sample volume is limited.

Analytical Challenges for Small Volume Elutions

The Cuvette Limitation

Traditional UV-Vis spectrophotometry relies on cuvettes with standard pathlengths of 10mm, typically requiring sample volumes of 3.0-3.5mL for macro cuvettes and 0.7-1.5mL for semi-micro versions [12]. This creates an immediate incompatibility with spin column elutions typically ranging from 50-200µL [40]. Even with specialized micro cuvettes requiring 50-350µL samples, the limited volume from purification necessitates either sample pooling or significant dilution—both problematic approaches for precious samples.

The material properties of cuvettes further complicate analysis. Optical glass cuvettes are only suitable for visible range measurements (~340-700nm) [12], while UV-grade quartz is required for nucleic acid quantification (260nm) and protein analysis (280nm) [12]. Additionally, cuvettes present cleaning challenges between samples and risk carryover contamination [2].

Cuvette-Free Alternatives

Microvolume UV-Vis measurements have emerged as a standard solution for analyzing small-volume elutions from purification workflows. These systems typically require only 1µL of sample, which is suspended between optical surfaces by surface tension [2]. This approach offers several distinct advantages for drug development workflows:

  • Sample Conservation: Using only 1µL preserves precious purified material for additional assays and downstream applications [2]
  • Eliminated Dilution: Direct measurement avoids errors from serial dilution and pipetting inconsistencies [2]
  • Automated Pathlength Correction: Technologies like SmartPath automatically select optimal pathlengths for different concentration ranges [2]

The dynamic range of microvolume systems makes them particularly suitable for analyzing spin column elutions. For example, the DeNovix DS-Series instruments can detect dsDNA concentrations from 0.75 ng/µL to 37,500 ng/µL without dilution [2], comfortably accommodating typical purification yields.

G SPIN SPIN ELUTION ELUTION SPIN->ELUTION 50-200 µL DECISION DECISION ELUTION->DECISION ANALYSIS ANALYSIS DATA DATA ANALYSIS->DATA DECISION->ANALYSIS Proceed POOL POOL DECISION->POOL Insufficient volume DILUTE DILUTE DECISION->DILUTE Too concentrated

Diagram 1: Sample Analysis Decision Path

Integrated Workflow Protocols

Protocol 1: Traditional Spin Column Purification with Cuvette Analysis

This protocol describes integrated protein purification using spin columns followed by cuvette-based quantification, suitable for laboratories with standard equipment.

Materials:

  • Spin columns with appropriate resin (affinity, ion exchange, or size exclusion)
  • Centrifuge with rotor for spin columns
  • Microcentrifuge tubes
  • UV-transparent cuvettes (quartz for UV measurements, glass or plastic for visible range)
  • Spectrophotometer with cuvette holder
  • Appropriate buffers (binding, wash, elution)

Procedure:

  • Column Equilibration: Add 500µL equilibration buffer to spin column. Centrifuge at 5,000×g for 1 minute. Discard flow-through.
  • Sample Binding: Apply up to 500µL sample to column. Centrifuge at 5,000×g for 2 minutes. Discard flow-through.
  • Washing: Add 500µL wash buffer. Centrifuge at 5,000×g for 2 minutes. Discard flow-through. Repeat twice.
  • Elution: Place column in clean collection tube. Add 50-100µL elution buffer. Incubate 1 minute at room temperature. Centrifuge at 5,000×g for 2 minutes. Repeat elution twice for total volume of 150-300µL.
  • Sample Pooling: Combine elution fractions if sufficient volume is needed for cuvette measurement.
  • Cuvette Measurement:
    • Select appropriate cuvette based on wavelength requirements:
      • Quartz: 190-2500nm (UV-Vis)
      • Glass: 340-2500nm (visible-NIR)
      • Plastic: 380-780nm (visible only)
    • Add minimum 700µL sample to semi-micro cuvette or 3.0mL to macro cuvette
    • Blank spectrometer with elution buffer
    • Measure absorbance at target wavelength (260nm DNA, 280nm protein)
    • Clean cuvette thoroughly between samples

Notes: This method requires pooling multiple elutions or significant sample dilution for cuvette measurement, making it suboptimal for limited samples. Carryover risk necessitates rigorous cuvette cleaning between measurements.

Protocol 2: High-Throughput Tip-Based Purification with Microvolume Analysis

This protocol describes an automated workflow for high-throughput purification and analysis using tip-based formats and microvolume spectrophotometry.

Materials:

  • PhyTip columns or similar tip-based purification systems
  • Liquid handling robot (Hamilton, Tecan, Beckman, or equivalent)
  • Microvolume spectrophotometer (DeNovix DS-Series or equivalent)
  • 96-well plates
  • Appropriate buffers

Procedure:

  • System Setup: Load PhyTip columns onto liquid handler. Program purification protocol according to manufacturer specifications.
  • Automated Purification:
    • Aspirate 200-500µL sample from source plate
    • Dispense onto PhyTip column with bidirectional flow (10 cycles)
    • Wash with 500µL wash buffer (5 cycles)
    • Elute with 40-120µL elution buffer (5 cycles)
    • Transfer eluate to collection plate
  • Microvolume Measurement:
    • Calibrate microvolume spectrophotometer with elution buffer
    • Pipette 1-2µL purified sample onto measurement pedestal
    • Lower measurement arm to create liquid column
    • Acquire full spectrum (220-750nm) or specific wavelengths
    • Wipe clean with laboratory wipe between samples
  • Data Analysis: Export concentration values directly to database or electronic lab notebook.

Notes: This method enables purification of 96 samples in approximately 15 minutes with minimal hands-on time [40]. The small elution volumes (120µL) and high concentrations achieved are ideal for direct microvolume analysis without dilution.

G cluster_0 High-Throughput Workflow cluster_1 Traditional Workflow DESIGN DESIGN HT_DESIGN AI-Assisted Design DESIGN->HT_DESIGN TRAD_DESIGN Manual Design DESIGN->TRAD_DESIGN PURIFICATION PURIFICATION ANALYSIS ANALYSIS DATA DATA HT_DATA Automated Analysis DATA->HT_DATA TRAD_DATA Manual Analysis DATA->TRAD_DATA HT_PURIFICATION Automated Tip-Based Purification HT_DESIGN->HT_PURIFICATION HT_ANALYSIS Microvolume UV-Vis HT_PURIFICATION->HT_ANALYSIS HT_ANALYSIS->HT_DATA TRAD_PURIFICATION Spin Column Purification TRAD_DESIGN->TRAD_PURIFICATION TRAD_ANALYSIS Cuvette UV-Vis TRAD_PURIFICATION->TRAD_ANALYSIS TRAD_ANALYSIS->TRAD_DATA

Diagram 2: Workflow Comparison

Advanced Applications in Drug Development

High-Throughput Liquid Chromatographic Analysis

For applications requiring separation beyond spectrophotometric analysis, recent advances in liquid chromatography (LC) enable unprecedented throughput. By implementing droplet microfluidics for sample introduction, researchers have overcome traditional autosampler cycle time limitations [38]. This approach enables LC analysis at rates of 1 second per sample, allowing a complete 96-well plate to be analyzed in just 1.6 minutes [38].

The methodology involves:

  • Generating segmented sample plugs in PTFE tubing
  • Continuous infusion into a standard six-port injection valve
  • Rapid isocratic separations using short columns (2.1mm × 5mm) with superficially porous particles
  • Operation at high flow rates (5mL/min) for rapid separation

This technology is particularly valuable for screening enzyme inhibitors, analyzing metabolic reactions, and characterizing compound libraries in drug discovery campaigns [38].

Biomimetic Chromatography for Physicochemical Property Screening

Biomimetic chromatography (BC) has emerged as a powerful high-throughput technique for predicting key physicochemical properties during early drug discovery [41]. By using stationary phases that mimic biological environments, BC can assess lipophilicity, plasma protein binding, and membrane permeability with correlation to in vivo data [41].

Applications include:

  • Plasma Protein Binding (PPB): Using human serum albumin (HSA) and α1-acid glycoprotein (AGP) columns to predict drug binding [41]
  • Lipophilicity Assessment: Determining ChromlogD values as high-throughput alternatives to traditional shake-flask methods [41]
  • Volume of Distribution Prediction: Correlating retention factors with in vivo distribution parameters [41]

When integrated with machine learning algorithms, BC data can predict complex pharmacokinetic parameters, significantly accelerating compound prioritization [41].

Research Reagent Solutions Toolkit

Table 2: Essential Materials for Integrated Purification and Analysis Workflows

Category Specific Products/Technologies Key Function Application Notes
Purification Systems Spin columns, Magnetic beads, PhyTip columns, Filter plates Sample purification and concentration PhyTip offers 15-min protocol for 96 samples [40]
Liquid Handlers Hamilton, Tecan, Beckman, Opentrons Automation of purification processes Essential for tip-based purification formats [39]
Microvolume Spectrophotometers DeNovix DS-Series, Thermo Scientific NanoDrop UV-Vis analysis of 1μL samples SmartPath technology auto-adjusts pathlength [2]
Traditional Spectrophotometers Agilent Cary Series, Shimadzu UV Series Cuvette-based measurements Require 0.7-3.5mL sample volumes [12]
Cuvettes Quartz (UV-grade), Optical glass, Plastic disposable Sample containment for traditional UV-Vis Material selection critical for wavelength range [12]
Chromatography Systems RapidFire MS, UHPLC with droplet microfluidics High-throughput separation and analysis Enable 1s/sample LC analysis [38]
Biomimetic Columns CHIRALPAK HSA, CHIRALPAK AGP Predicting plasma protein binding High-throughput ADMET screening [41]
CU-CPT 4a(2R)-2-[(3-chloro-6-fluoro-1-benzothiophene-2-carbonyl)amino]-3-phenylpropanoic acid(2R)-2-[(3-chloro-6-fluoro-1-benzothiophene-2-carbonyl)amino]-3-phenylpropanoic acid is a high-purity biochemical For Research Use Only. Not for human or veterinary diagnostic or therapeutic use.Bench Chemicals
CypD-IN-29CypD-IN-29, MF:C26H20FN5O2S, MW:485.5 g/molChemical ReagentBench Chemicals

The integration of modern purification technologies with appropriate analytical methods is essential for efficient drug development workflows. While traditional spin column purification coupled with cuvette-based analysis remains feasible, the significant volume requirements and manual processes create substantial bottlenecks. The emergence of automated tip-based purification formats and microvolume spectrophotometry addresses these limitations by enabling rapid processing of hundreds of samples with minimal volume requirements.

For researchers operating in high-throughput drug discovery environments, the implementation of integrated systems combining automated purification with cuvette-free analysis provides compelling advantages in speed, sample conservation, and data quality. As drug development campaigns increasingly screen thousands of candidates, these streamlined workflows will continue to grow in importance for maintaining efficient "design, make, test, analyze" cycles.

Application Notes: Cuvette-Based and Cuvette-Free UV-Vis Systems

Ultraviolet-Visible (UV-Vis) spectroscopy is a cornerstone analytical technique for quantitative analysis across major industries. The choice between traditional cuvette-based systems and modern cuvette-free (microvolume) systems is pivotal and depends on specific sample characteristics and application requirements [1] [34]. These technologies are integral to ensuring product quality, safety, and efficacy in pharmaceutical, life science, and food & beverage sectors.

Pharmaceutical Industry Applications

In pharmaceuticals, UV-Vis spectroscopy is critical for quality control (QC), drug development, and cleaning validation, driven by stringent regulatory standards [42] [43] [44].

Cuvette-Based System Applications:

  • Active Pharmaceutical Ingredient (API) Quantification: Used with quartz cuvettes for precise concentration measurement of APIs in solution, adhering to Beer-Lambert's law [1] [45]. The path length is typically 10 mm, ideal for standard concentrations in quality control labs [12].
  • Dissolution Testing: Monitors the drug release profile from solid dosage forms in a dissolution apparatus. The standard 10 mm path length cuvette is suitable for analyzing aliquot samples withdrawn at specific time intervals [44].
  • Cleaning Validation: In-line UV spectroscopy with flow-through cells (a specialized cuvette format) is employed for real-time monitoring of residual cleaning agents and product residues in Clean-in-Place (CIP) systems [45]. A longer pathlength (e.g., 10 cm) is often used to increase sensitivity and lower the limit of detection (LOD) for contaminants [45].

Cuvette-Free (Microvolume) System Applications:

  • High-Throughput Drug Screening: Essential for quantifying DNA, RNA, and proteins in small sample volumes (e.g., 1 µL) during early drug discovery stages, where sample is limited and precious [34].
  • Raw Material Verification: Provides rapid identity checks for excipients and raw materials using minimal sample, streamlining incoming QC processes [44].

Life Science & Biotechnology Research Applications

Life science research demands versatility and sample conservation, making both systems valuable [42].

Cuvette-Based System Applications:

  • Bacterial Culture Monitoring (OD600): The standard 10 mm path length of a cuvette is ideal for measuring optical density at 600 nm (OD600) to track microbial growth in suspensions [34]. Glass or plastic cuvettes are typically used for this visible wavelength application [12].
  • Enzyme Kinetic Assays: The stable, controlled environment of a cuvette is required for monitoring absorbance changes over time in enzymatic reactions [34]. Quartz cuvettes are preferred for their stability across UV and visible wavelengths.
  • DNA Melting Curve Analysis: Used to study the thermal denaturation of DNA by monitoring absorbance changes at 260 nm as temperature increases, requiring the thermal stability of a quartz cuvette [43].

Cuvette-Free (Microvolume) System Applications:

  • Nucleic Acid Quantification and Purity Assessment: The gold standard for measuring DNA/RNA concentration and assessing purity (via A260/A280 and A260/A230 ratios) after extraction and purification protocols [1] [34]. This preserves valuable samples for downstream applications like PCR or sequencing.
  • Protein Characterization: Rapidly determines protein concentration (at 280 nm or via colorimetric assays like Bradford) and analyzes small-volume protein samples [12] [34].

Food and Beverage Industry Applications

This sector uses UV-Vis spectroscopy for quality control, ensuring product consistency, and detecting contaminants [42] [44].

Cuvette-Based System Applications:

  • Additive and Preservative Analysis: Quantifies compounds like artificial colorants, antioxidants, and preservatives in finished products. Requires cuvettes compatible with various solvents [42].
  • Contaminant Detection: Identifies and quantifies contaminants such as nitrates and heavy metals in water sources and final products [42]. Larger volume cuvettes may be used for representative sampling.

Cuvette-Free (Microvolume) System Applications:

  • Concentrated Additive Analysis: Directly measures highly concentrated colorants or antioxidants without the need for dilution, saving time and reducing error [34].
  • Quality Control in High-Throughput Settings: Provides rapid analysis of multiple samples for parameters like vitamin content or pigment concentration on the production line [44].

Experimental Protocols

Protocol 1: Cuvette-Based In-Line UV Monitoring for Cleaning Validation in Biopharma

This protocol describes the use of an in-line UV flow cell to continuously monitor the removal of a formulated alkaline cleaner and protein residues during equipment cleaning [45].

Research Reagent Solutions

Reagent/Material Function in Protocol
Formulated Alkaline Cleaner Target analyte for detection and quantification.
Type 1 Water Serves as blank/reference and diluent.
Bovine Serum Albumin (BSA) Model protein soil for method development.
Monoclonal Antibody (mAb) Representative biopharmaceutical product soil.
0.1 M Sodium Hydroxide & 0.1 M HCl For pH adjustment during degradation studies.
Quartz Cuvette (10 mm) For initial method development and validation [45].
Sanitary In-Line UV Flow Cell Houses the sample for real-time, in-line measurement [45].

Methodology

  • Instrument and Wavelength Selection: Set up an in-line UV spectrometer with a sanitary flow cell. Based on the cleaner's absorbance profile, set the monitoring wavelength to 220 nm for optimal specificity [45].
  • Path Length Adjustment: Increase the flow path length to 10 cm to enhance sensitivity and achieve a lower limit of detection (LOD) and limit of quantitation (LOQ) [45].
  • System Calibration:
    • Prepare a blank using Type 1 water.
    • Prepare standard solutions of the alkaline cleaner in Type 1 water across the concentration range of 25–1000 ppm.
    • Flush the system with the blank to establish a baseline.
    • Measure the absorbance of each standard to generate a calibration curve (Absorbance vs. Concentration).
  • Interference Testing:
    • Prepare solutions of model process soils (e.g., BSA, mAb, insulin) at relevant concentrations.
    • Prepare 1:1 mixtures of these soils with the alkaline cleaner.
    • Analyze all solutions to ensure the UV response is additive and that no signal enhancement or depression occurs.
  • Degradation Studies (Optional):
    • To confirm detection of degraded products, treat the mAb with 1% and 3% alkaline cleaner solution at 60°C for 5 minutes to induce degradation.
    • Quench the reaction by dilution with ambient temperature Type 1 water.
    • Analyze the degraded samples to verify they are still detected by the UV method [45].
  • In-Line Process Monitoring:
    • Install the probe in the final rinse water line.
    • Initiate the cleaning process. The system provides continuous, real-time absorbance data at 220 nm.
    • The cleaning cycle is considered complete when the absorbance signal returns to and stabilizes at the baseline level, indicating satisfactory removal of contaminants.

The workflow for this protocol is summarized below:

start Start Method Setup setup Set up In-line UV Wavelength: 220 nm Pathlength: 10 cm start->setup cal Prepare Calibration Standards (25-1000 ppm) setup->cal blank Flush System with Blank (Type 1 Water) cal->blank curve Generate Calibration Curve blank->curve validate Perform Interference & Degradation Testing curve->validate monitor Monitor Cleaning Process in Real-Time validate->monitor decision Absorbance at Baseline? monitor->decision decision:s->monitor:n No end Cleaning Validated decision->end Yes

Protocol 2: Cuvette-Free Microvolume Quantification of Nucleic Acids

This protocol is for the rapid quantification and purity assessment of DNA and RNA samples using a cuvette-free spectrophotometer [34].

Research Reagent Solutions

Reagent/Material Function in Protocol
DNA/RNA Sample The analyte of interest for quantification.
TE Buffer (pH 8.0) Recommended suspension medium; EDTA chelates metals to protect nucleic acids.
Nuclease-Free Water Alternative suspension medium for RNA.
DeNovix DS-Series or Equivalent Example of a cuvette-free microvolume spectrophotometer.
Lint-Free Lab Wipes For cleaning the measurement surfaces post-analysis.

Methodology

  • Instrument Preparation: Initialize the microvolume spectrophotometer. Ensure the measurement pedestal is clean and dry.
  • Blank Measurement:
    • Pipette 1–2 µL of the suspension buffer (e.g., TE Buffer or nuclease-free water) onto the lower measurement surface.
    • Close the arm to engage the upper optical surface, forming a liquid column of 0.2–1.0 mm path length (automatically managed by technologies like SmartPath) [34].
    • Execute the blank measurement command to establish the baseline.
    • Wipe clean both optical surfaces with a lint-free lab wipe.
  • Sample Measurement:
    • Pipette 1–2 µL of the nucleic acid sample onto the lower pedestal.
    • Close the arm to form the liquid column. The instrument automatically selects the optimal path length based on sample concentration.
    • Initiate the measurement. The instrument typically provides concentration (ng/µL for DNA/RNA) and purity ratios (A260/A280 and A260/A230) in seconds.
    • Wipe clean both optical surfaces thoroughly before the next measurement.
  • Data Interpretation:
    • Concentration: Calculated by the instrument based on absorbance at 260 nm and the known path length.
    • Purity:
      • A260/A280: Pure DNA is ~1.8, pure RNA is ~2.0. Lower ratios suggest protein contamination.
      • A260/A230: Should be >2.0. Lower values may indicate contamination by salts, EDTA, or carbohydrates [1].

The workflow for this protocol is summarized below:

start Start Nucleic Acid QC init Initialize Instrument & Clean Pedestal start->init blank Load 1-2 µL Blank Buffer init->blank measure_blank Measure Blank to Baseline blank->measure_blank clean_blank Wipe Surfaces Clean measure_blank->clean_blank sample Load 1-2 µL DNA/RNA Sample clean_blank->sample measure_sample Measure Sample (Auto Pathlength) sample->measure_sample results Record Concentration (A260) & Purity Ratios measure_sample->results end Analysis Complete results->end

Quantitative Data and Technology Comparison

Cuvette Specifications for Different Applications

The appropriate selection of cuvette material and volume is fundamental for accurate results in cuvette-based analyses [12] [46].

Parameter Optical Glass UV-Grade Quartz Standard Plastic (PMMA/PS) UV-Transparent Plastic
Wavelength Range ~340–2500 nm [12] ~190–2500 nm [12] ~380–780 nm [12] ~220–900 nm [12]
Typical Cost Moderate High (Premium) Low (Disposable) Low to Moderate
Chemical Resistance High Very High Low (Sensitive to organics) Moderate
Ideal Application Visible light assays (OD600, colorimetry) [12] UV quantification (Nucleic acids, proteins), high-precision work [12] Educational labs, visible-light protein assays [12] Disposable option for UV work when quartz is not available [12]
Sample Volume (Typical) 3.5 mL (Standard) [46] 3.5 mL (Standard) [46] 3.5 mL (Standard) [46] 3.5 mL (Standard) [46]

Cuvette vs. Cuvette-Free System Selection Guide

The decision to use a cuvette-based or cuvette-free system depends on multiple experimental factors, as outlined in the guide below [34].

Factor Cuvette-Based Systems Cuvette-Free (Microvolume) Systems
Sample Volume Requires larger volumes (≥ 1 mL for standard cells) [46] Ideal for limited samples (uses only 1 µL) [34]
Sample Type Aqueous and volatile/organic solvents [34] Primarily aqueous solutions (risk of evaporation) [34]
Concentration Standard concentrations (may require dilution for high concentrations) Wide dynamic range; handles high concentrations without dilution [34]
Key Applications Kinetic assays, OD600, volatile solvents, in-line process monitoring [34] [45] Nucleic acid/protein quantification, high-throughput screening [34]
Throughput & Workflow Slower; requires cleaning/consumable management Faster; no cleaning, minimal consumables [34]
Pathlength Fixed (typically 10 mm) Automatically adjusted (e.g., 0.2-1.0 mm) [34]

The global UV-Vis spectrophotometer market, estimated at $2.5 billion in 2025, is projected to grow at a CAGR of 7% through 2033, underscoring the technique's critical role [44]. The pharmaceutical and biotechnology segment is the largest, accounting for 35-40% of the market, followed by environmental monitoring (20-25%) and food and beverage (15-20%) [44]. The market for in-line UV-vis spectroscopy, valued at over $1.6 billion in 2025, is expected to reach $3.1 billion by 2035, highlighting the growing demand for real-time process monitoring in manufacturing [43]. Key trends include miniaturization, increased automation, and the integration of artificial intelligence (AI) for data analysis [44].

Maximizing Data Accuracy: Troubleshooting Common Pitfalls in Small-Volume Analysis

In the context of research comparing cuvette-based and cuvette-free UV-Vis systems for small sample volumes, the management of sample containers emerges as a pivotal factor influencing data quality. Cuvettes serve as the essential interface between your sample and the spectroscopic instrument, and improper handling can introduce significant experimental error [12]. Contamination, whether from residual analytes, cleaning agents, or material degradation, directly compromises the accuracy of absorbance measurements, particularly when working with precious microliter-scale samples [47].

This application note provides detailed protocols for mitigating contamination risks through two primary strategies: the rigorous cleaning of reusable cuvettes and the correct implementation of disposable alternatives. By framing these practices within a broader methodological comparison, we aim to equip researchers and drug development professionals with the knowledge to safeguard data integrity in sensitive spectroscopic applications.

Cuvette Material Selection: Matching Material to Application

The first defense against contamination is selecting a cuvette material chemically compatible with your sample. An inappropriate choice can lead to cuvette dissolution, crazing, or analyte adsorption, all of which contribute to contamination.

Table 1: Cuvette Material Properties and Contamination Risks

Material Wavelength Range Primary Contamination Risks Ideal Applications
UV-Grade Quartz ~190 nm to 2,500 nm [12] Residual protein/DNA carryover; etching from strong alkalis [47] UV-Vis spectroscopy; nucleic acid/protein quantification [12]
Optical Glass ~340 nm to 2,500 nm [12] Not suitable for UV measurements below ~340 nm [12] Colorimetric assays, visible light applications [12]
Plastic (PS/PMMA) ~285 nm to 900 nm (PMMA) [48] [11] Leaching of polymers; absorption of organic molecules; not reusable [12] [48] Routine visible/UV-Vis work; single-use to avoid cross-contamination [49] [50]

Key Selection Criteria:

  • UV Measurements: Quartz is the gold standard for measurements below 300 nm. While UV-transparent plastic exists, it offers lower optical quality [12] [11].
  • Chemical Resistance: For organic solvents (e.g., acetone, chloroform), use quartz or glass, as they will dissolve or craze plastic cuvettes [12].
  • Cost vs. Risk: Reusable quartz/glass cuverts have a higher initial cost but are cost-effective long-term. Disposable plastics eliminate cleaning and cross-contamination risks, making them ideal for high-throughput screens or hazardous samples [49] [12].

Experimental Protocols for Cleaning Reusable Cuvettes

Residues from previous analyses are a primary source of contamination, leading to imprecision, low sensitivity, and inaccurate data [47]. The following protocol outlines a systematic approach for cleaning reusable quartz and glass cuvettes.

Safety and Preparation

Personal Protection: Always wear appropriate personal protective equipment (PPE), including a lab coat, nitrile gloves, and safety glasses or goggles [47]. Hazard Management: Procedures involving concentrated acids (e.g., HCl, HNO₃) or flammable solvents (e.g., methanol, acetone) must be performed in a functioning fume hood [47].

Research Reagent Solutions:

  • Dilute Acid (2M): Hydrochloric acid (HCl) or Nitric acid (HNO₃) [47].
  • Acid (5M): Hydrochloric acid (HCl) or Nitric acid (HNO₃) [47].
  • Neutral pH Detergent: A lab-grade, neutral pH detergent to avoid leaving residues.
  • Solvents: High-purity water (deionized/distilled) and appropriate solvents like ethanol or methanol.

Detailed Cleaning Workflow

The cleaning process must be tailored to the nature of the contaminating sample. The workflow below generalizes the procedure, with specific rinses detailed in Table 2.

G Start Start Cuvette Cleaning Prep Safety & Preparation Wear PPE (gloves, goggles, lab coat) Perform in fume hood for hazardous steps Start->Prep Empty Empty Sample Prep->Empty InitialRinse Initial Rinse Rinse with solvent or warm water with detergent Empty->InitialRinse ConsultTable Consult Contamination Guide (Table 2) for specific rinse sequence InitialRinse->ConsultTable AcidRinse Acid Rinse (if required) e.g., Dilute HCl for salts/proteins ConsultTable->AcidRinse FinalRinse Copious Water Rinse Rinse with deionized/ distilled water 10+ times AcidRinse->FinalRinse Dry Dry & Store Air dry upside down on clean tissue; store protected FinalRinse->Dry Inspect Inspect for Damage Replace if cracked or scratched Dry->Inspect

Diagram 1: Cuvette cleaning workflow for contamination prevention.

Table 2: Contamination-Specific Rinse Procedures

Sample Type Example Contaminants Recommended Cleaning Sequence & Reagents
Aqueous Proteins, DNA, Biologics [47] 1. Empty cell → 2. Warm water with detergent → 3. Rinse with dilute acid (e.g., 2M HCl) → 4. Copious water rinse → Repeat 2-3 times [47]
Aqueous Salt solutions [47] 1. Rinse with warm water → 2. Acid rinse (e.g., 2M HCl) → 3. Copious water rinse → Repeat 2-3 times [47]
Organic Oil-based samples, Alcohols [47] （Fume Hood） 1. Solvent rinse (compatible solvent) → 2. Warm water with detergent → 3. Dilute acid rinse → 4. Copious water rinse → Repeat 2-3 times [47]
Stubborn Residues Dried-on samples, Fluorescence dyes [47] （Fume Hood） Soak in 5M Nitric Acid (HNO₃), then copious water rinse immediately. Note: Do not use nitric acid on anti-reflection coated cuvettes [47].

Post-Cleaning Inspection and Storage

  • Inspection: Visually inspect cuvettes for cracks or scratches after cleaning. Scratched optical surfaces scatter light and degrade measurement accuracy and must be replaced [47] [50].
  • Drying: Use only lens cleaning tissue or a fine, lint-free wiper cloth for the optical windows. Standard tissue paper contains wood fibers that can scratch polished surfaces [47].
  • Storage: Store fully dried cuvettes in a clean, protective container. For long-term storage, some protocols recommend storing them in a distilled water bath to prevent residues from drying and sticking to the walls [47].

Protocols for Handling Disposable Cuvettes and Contamination Avoidance

Disposable plastic cuvettes (made of polystyrene or PMMA) are economical alternatives that eliminate cleaning, thereby improving productivity and reducing cross-contamination risks [49] [12].

When to Choose Disposable Cuvettes

  • High-Throughput Applications: Situations requiring rapid sample processing without downtime for cleaning [49].
  • Hazardous or Infectious Samples: Analysis where decontamination of reusable cuvettes poses a safety risk [49].
  • Samples Prone to Cuvette Fouling: Materials that strongly adhere to cuvette walls, such as viscous solutions or concentrated proteins.
  • Visible Range Measurements: Confirmed applications within the material's transmission range (e.g., 380-780 nm for standard polystyrene) [12].

Limitations and Best Practices

  • Spectral Range: Standard plastic cuvettes are unsuitable for UV measurements below ~380 nm, as they absorb UV light and distort results. For UV work, select UV-transparent plastics, acknowledging their lower optical quality compared to quartz [12] [11].
  • Chemical Compatibility: Plastic cuvettes are sensitive to many organic solvents (e.g., acetone, chloroform), which can dissolve or craze the material [12].
  • Optical Precision: They generally have less precise optics than quartz or glass and are not intended for reuse [12].
  • Volume Considerations: Choose the appropriate size (e.g., semi-micro for ~1.5 mL) to match your sample volume and ensure the meniscus is sufficiently high for the light path [48].

The choice between reusable and disposable cuvettes, and the subsequent handling protocols, is a critical determinant in the reliability of data for small-volume UV-Vis research. Rigorous, contamination-specific cleaning of quartz and glass cuvettes preserves their longevity and measurement fidelity. In parallel, the strategic deployment of disposable plastic cuvettes offers an uncompromising solution for eliminating cross-contamination in appropriate applications.

By adhering to these detailed protocols, researchers can directly mitigate key sources of analytical error. This ensures that the inherent performance of the UV-Vis system—whether cuvette-based or cuvette-free—is not undermined by the vessel containing the sample, thereby safeguarding the integrity of research and development outcomes.

In the context of spectroscopic analysis, particularly for research involving small sample volumes, sample integrity is paramount. Physical imperfections such as air bubbles, evaporation, or partial sample loss can significantly skew absorbance readings, leading to unreliable data. This challenge is a critical factor in the ongoing evaluation of cuvette-based versus cuvette-free UV-Vis systems. While cuvette-free systems (e.g., microvolume systems with sample retention technology) inherently minimize these risks by reducing the number of liquid handling steps and eliminating a transfer vessel, traditional cuvette-based methods remain widely used. Therefore, robust protocols to detect and prevent these integrity issues are essential for ensuring data accuracy, especially in high-stakes fields like drug development where sample volume and concentration are often limited.

This application note provides detailed methodologies for researchers to identify, troubleshoot, and prevent common threats to sample integrity.

Physical Interferences and Their Impact on Data Quality

The presence of air bubbles or a reduction in sample volume directly interferes with the light path in a spectrophotometer, causing physical interferences that compromise data.

  • Air Bubbles: Bubbles suspended in the liquid sample scatter light, leading to an erroneously high absorbance reading across the wavelength spectrum. This scattering creates a background signal that obscures the true absorbance of the analyte [51].
  • Evaporation and Sample Loss: Evaporation, particularly from open-top cuvettes or during prolonged analysis, increases the effective concentration of the solute. This results in a higher than expected absorbance value, directly violating the concentration assumptions built into the Beer-Lambert law [12]. Sample loss, from handling or adhesion to vessel walls, reduces the available volume, which can prevent the cuvette's measurement window from being properly filled and lead to an inconsistent or undefined path length.

The following table summarizes these interferences, their causes, and observable effects.

Table 1: Common Physical Interferences Affecting Sample Integrity

Interference Type Primary Causes Impact on Absorbance Measurement Visible Indicators
Air Bubbles [51] Turbulent pipetting; filling cuvettes at an angle; using dirty cuvettes; temperature gradients. Increased, erratic absorbance due to light scattering. Visible spheres or particles within the measurement window when inspected [28].
Evaporation [12] Open-top cuvettes; long measurement times; high ambient temperature; low-humidity environments. Falsely elevated absorbance due to increased analyte concentration. Meniscus level drop; visible condensation on cuvette lid (if sealed).
Sample Loss [12] Adhesion to pipette tips; improper cuvette handling (spillage); capillary action in semi-micro cuvettes. Unstable or lower-than-expected signal; inability to fill the light path. Liquid visible outside the main chamber; air in the measurement window.

Detection and Prevention Protocols

Air Bubbles: Detection and Removal

Experimental Protocol for Visual and Instrumental Detection

  • Visual Inspection: Before placing the cuvette in the instrument, visually inspect the measurement window from all sides against a bright background. Cuvettes with openly accessible side walls, such as the Eppendorf UVette, are designed to facilitate this check [28]. Look for any small, suspended spheres.
  • Instrumental Monitoring: For automated or high-throughput systems, instrumental detection is possible. One research-demonstrated method involves a laser beam passing through a flow-through cuvette onto a position-sensitive detector (PSD). When a bubble traverses the beam, it scatters the radiation, producing a characteristic fingerprint signal on the PSD that can be counted and analyzed for velocity [52].
  • Spectral Signature Check: Run a quick spectral scan (e.g., from 230 nm to 350 nm for nucleic acids). A spectrum with an unusually high and noisy baseline, rather than a smooth curve, is indicative of significant light scattering from bubbles or other particulates [51].

Prevention and Correction Workflow

The following diagram outlines the key steps for preventing and addressing air bubbles in your sample.

bubble_workflow start Start: Sample Loading p1 Pre-fill & Tap Cuvette start->p1 p2 Pipette Slowly Along Cuvette Wall p1->p2 p3 Use Cuvette with Funnel-Shaped Base p2->p3 inspect Inspect for Bubbles p3->inspect decision Bubbles Detected? inspect->decision correct Gently Tap Cuvette or Use a Centrifuge decision->correct Yes proceed Proceed with Measurement decision->proceed No correct->inspect

Evaporation and Sample Loss: Mitigation Strategies

Detailed Protocol for Volume Integrity

  • Cuvette Selection and Sealing:

    • For small volumes (< 50 µL), use specialized micro-volume cuvettes that are designed to hold the sample in a fixed, small geometry without a large air interface [11].
    • For macro volumes, select sealed cuvettes with tight-fitting caps or lids to create a vapor barrier. Parafilm can be used to seal the top of an open-top cuvette for short-term measurements.
    • Consider the material's inherent properties. Cuvettes help minimize evaporation compared to open droplets [12].

  • Controlled Environment and Handling:

    • Maintain a stable, cool laboratory temperature to reduce the vapor pressure of the solvent.
    • Minimize the time between sample loading and measurement. For kinetic studies requiring multiple readings over an extended period, ensure the sample compartment is temperature-controlled and the cuvette is sealed.
    • Handle cuvettes by the opaque or frosted sides only to prevent sample heating from finger contact and to avoid transferring oils to the optical surface [53] [54].

  • Verification of Sample Volume:

    • Visually confirm that the liquid meniscus is at the appropriate level for the cuvette type and that the entire measurement window is filled.
    • For critical measurements with very small volumes, use a cuvette design that incorporates a "funnel-shaped base," which helps center the sample and prevent it from being drawn out of the measurement area by capillary action [28].

The Scientist's Toolkit: Essential Materials for Sample Integrity

Table 2: Research Reagent Solutions for Sample Integrity

Item Function & Rationale
Quartz or UV-Grade Plastic Cuvettes [12] [55] Essential for UV-range measurements (e.g., nucleic acid quantification at 260 nm). Quartz offers full UV-Vis transparency and high chemical resistance.
Sealed or Lidded Cuvettes Creates a physical barrier against solvent evaporation during measurement, crucial for long-term or kinetic studies.
Micro-Volume Cuvettes/Plates [11] Designed to hold microliter-volume samples (e.g., 0.5 - 50 µL) in a fixed, short path length, drastically reducing the air-liquid interface and thus evaporation.
PCR-Clean, Protein-Free Cuvettes [28] Individually packaged, certified cuvettes prevent sample loss and degradation due to surface adsorption or contamination from previous use. Ideal for sensitive downstream applications.
High-Purity, Spectrophotometric-Grade Solvents [53] Minimize background absorbance and chemical interference that can complicate baseline correction and mask true sample signals.
Cuvette Adapters/Positioners [28] Ensure the cuvette is correctly aligned in the light path, which is critical for reproducible path length and accurate absorbance values, especially with small-window micro cuvettes.
Lint-Free Gloves & Wipes [53] [54] Prevent contamination of the optical windows with particulates, oils, or fingerprints, which can scatter or absorb light.
D-87503D-87503|Dual ERK/PI3K Inhibitor|RUO
G-9791G-9791, CAS:1926204-95-6, MF:C26H26ClFN6O2, MW:508.98

Maintaining sample integrity by proactively addressing air bubbles, evaporation, and sample loss is a foundational requirement for generating reliable and reproducible UV-Vis data. The protocols outlined here provide a concrete framework for researchers to enhance their spectroscopic practice. As the field moves forward, the choice between cuvette and cuvette-free systems will continue to be influenced by these fundamental challenges. Cuvette-free systems offer a compelling advantage by design, minimizing many liquid handling steps that introduce risk. However, for applications requiring traditional cuvettes, the diligent application of these detection and prevention strategies is indispensable for ensuring data quality in pharmaceutical research and other scientific disciplines.

In UV-Vis spectroscopy, the Beer-Lambert Law establishes a linear relationship between absorbance and analyte concentration, but this holds true only within a specific linear dynamic range [2] [1]. A fundamental and practical challenge arises when a sample's concentration pushes its absorbance beyond this range, leading to non-linear response and inaccurate quantitation. For researchers working with precious, limited-volume samples—a common scenario in drug development—the traditional solution of dilution is often undesirable or impractical, as it consumes additional sample, introduces pipetting errors, and alters the sample matrix [2].

This application note explores advanced strategies for managing over-range samples without dilution, framing the discussion within a comparative analysis of traditional cuvette-based systems and modern cuvette-free microvolume systems. The choice between these platforms significantly influences the available tactics, balancing factors such as required sample volume, pathlength flexibility, and overall workflow efficiency. We provide actionable protocols and data-driven comparisons to guide researchers in selecting the optimal method for their specific concentration challenges, ensuring accurate results while conserving valuable samples.

Theoretical Foundation: Beer-Lambert Law and Pathlength

The Beer-Lambert Law (A = εbc) defines absorbance (A) as the product of the molar absorptivity (ε), pathlength (b), and concentration (c) [2] [1]. This principle is the cornerstone of UV-Vis quantification. The pathlength—the distance light travels through the sample—is a critical, often adjustable variable in this equation [2] [56]. For a given analyte, the absorbance value is directly proportional to both the pathlength and the concentration.

When a sample is too concentrated, it produces an absorbance value that exceeds the upper limit of the instrument's linear range, typically around 1.0-1.5 AU. In a system with a fixed pathlength, the only viable option is to dilute the sample until its absorbance falls within the linear range. However, the relationship between pathlength and absorbance provides a powerful alternative: reducing the pathlength effectively "dilutes" the absorbance signal without physically altering the sample's composition [56]. This fundamental insight enables the strategies outlined in the following sections.

Strategic Approaches and Comparative Analysis

The two primary system architectures—cuvette-based and cuvette-free (microvolume)—offer distinct pathways for handling over-range samples. The following table summarizes the core strategies available on each platform.

Table 1: Strategies for Handling Over-Range Samples on Different UV-Vis Platforms

Strategy Cuvette-Based Systems Cuvette-Free (Microvolume) Systems
Primary Principle Physical dilution or manual pathlength change Automated, software-controlled pathlength adjustment
Pathlength Flexibility Manual cuvette change required; discrete pathlengths (e.g., 1, 2, 10 mm) [56] Continuous, automatic pathlength adjustment (e.g., 0.02 mm to 1 mm) [2]
Sample Volume Required High (e.g., 0.5 mL to 3.5 mL per measurement) [12] Very low (1 µL for microvolume mode) [2]
Risk of User Error Higher (pipetting errors, cuvette mismatch) [2] Lower (minimal manual intervention)
Typical Workflow Speed Slower (multiple steps, cleaning) Faster ("load-and-measure," wipe clean) [2]

Strategy 1: Pathlength Reduction

Reducing the pathlength is the most direct way to lower the measured absorbance without dilution.

  • In Cuvette-Based Systems: This requires physically changing to a cuvette with a shorter pathlength. For instance, switching from a standard 10 mm cuvette to a 2 mm or 1 mm pathlength cuvette can reduce the absorbance signal by a factor of 5 or 10, respectively [56]. This approach demands a collection of cuvettes on hand and uses a relatively large sample volume to fill the cuvette, even with short pathlength models.
  • In Cuvette-Free Microvolume Systems: This strategy is seamlessly integrated and automated. Technologies like SmartPath automatically determine the optimal pathlength for the sample, dynamically adjusting it to bring the absorbance into the linear range [2]. This occurs within the original 1 µL droplet, offering unparalleled convenience and sample conservation.

Strategy 2: Wavelength Scanning and Secondary Peaks

For colored compounds or analytes with a broad absorption spectrum, measuring at a secondary, less intense absorption peak can provide a valid quantitative measurement within the linear range. This method is universally applicable across all spectrometer types.

Protocol: Identifying and Using a Secondary Wavelength

  • Perform a Scan: Instead of a single wavelength measurement, acquire a full absorbance spectrum (e.g., 200-800 nm for UV-Vis) [1].
  • Identify Peaks: Analyze the spectrum to identify all local absorbance maxima (peaks). The highest peak is the λ_max (primary peak). Identify a secondary peak with lower absorbance.
  • Validate Linearity: At the secondary peak wavelength, measure a series of standard solutions of known concentration to establish a new calibration curve and confirm the linear range at this wavelength.
  • Measure Samples: Quantify unknown samples at this secondary wavelength, using the new calibration curve.

Strategy 3: Sample Application as a Film

This is a specialized technique primarily for cuvette-based systems when no short pathlength cuvette is available. The sample is not contained within a cell but is instead spread as a thin film between two optically compatible surfaces. The pathlength is undefined and highly variable, making this method unsuitable for precise quantification via Beer-Lambert Law. However, it can be useful for qualitative confirmation of very high concentration or for checking for the presence of specific absorbing impurities.

Detailed Experimental Protocols

Protocol 1: Pathlength Reduction in a Cuvette-Based System

This protocol details the steps for manually overcoming a high-concentration challenge by using a short pathlength cuvette.

Research Reagent Solutions Table 2: Essential Materials for Cuvette-Based Pathlength Reduction

Item Function & Specification
Short Pathlength Cuvette Holds sample for analysis; 1 mm or 2 mm pathlength for high concentrations [56].
Compatible Spectrophotometer Instrument must accept the chosen cuvette type and have a beam height that illuminates the cuvette window [56].
Lint-Free Wipes For cleaning and drying cuvette exteriors to avoid scratching and light scattering [56].
Reference Solvent Matches the sample solvent; used to zero the instrument (e.g., buffer, water) [1].

Methodology:

  • Initial Measurement: Measure the sample in a standard 10 mm pathlength cuvette. If the absorbance at the target wavelength exceeds 1.5 AU, proceed.
  • Cuvette Selection: Select a clean, short pathlength cuvette (e.g., 1 mm). Ensure the material is appropriate for the wavelength range (e.g., quartz for UV measurements below 350 nm) [57].
  • Blank Measurement: Fill the short pathlength cuvette with the reference solvent and place it in the spectrophotometer. Perform a blank measurement to set the baseline.
  • Sample Measurement: Carefully replace the blank with your sample. Ensure the optical surfaces are clean and fingerprint-free. Record the absorbance.
  • Data Interpretation: The measured absorbance will be approximately (short pathlength / 10 mm) times the original absorbance. For precise quantification, a new calibration curve must be prepared using the same short pathlength cuvette.

Protocol 2: Automated Pathlength Adjustment in a Microvolume System

This protocol leverages the built-in functionality of modern microvolume spectrophotometers to automatically manage sample concentration.

Research Reagent Solutions Table 3: Essential Materials for Microvolume Analysis

Item Function & Specification
Microvolume Spectrophotometer Instrument with microvolume capability and automated pathlength technology (e.g., SmartPath) [2].
Dry, Lint-Free Lab Wipes For quick and easy cleaning of the measurement pedestals between samples [2].
Precision Pipette For accurate dispensing of 1 µL sample volumes.

Methodology:

  • System Initialization: Initialize the instrument according to the manufacturer's instructions. This typically involves a self-check and an optional system blanking step with the pedestals clean and dry.
  • Sample Preparation: No dilution is required. Ensure the sample is homogeneous and free of particulates that could scatter light.
  • Sample Loading: Using a calibrated pipette, deposit a 1 µL droplet of the sample directly onto the lower measurement pedestal [2].
  • Automated Measurement: Close the instrument lid. The system will automatically lower the upper pedestal, forming a column of liquid of a dynamically determined height. It will then take the absorbance measurement at the optimized pathlength and report the concentration.
  • Cleanup: Open the lid and wipe both pedestals clean with a dry, lint-free lab wipe. The system is ready for the next sample.

The workflow for selecting the appropriate strategy based on the available equipment and sample properties is summarized in the diagram below.

G Start Start: Sample Absorbance Exceeds Linear Range Decision1 Available System? Start->Decision1 Decision2 Analyte has a secondary peak? Decision1->Decision2 Cuvette-Based MicrovolumePath Use Microvolume System (Protocol 2) Decision1->MicrovolumePath Microvolume CuvettePath Use Cuvette-Based System (Protocol 1) Decision2->CuvettePath No SecondaryPeakPath Measure at Secondary Wavelength Decision2->SecondaryPeakPath Yes End Accurate Concentration within Linear Range MicrovolumePath->End CuvettePath->End SecondaryPeakPath->End

Figure 1. Decision workflow for handling over-range samples

Navigating the challenge of samples beyond the linear dynamic range in UV-Vis spectroscopy no longer necessitates the default practice of dilution. The strategic reduction of pathlength offers a superior alternative that preserves sample integrity and improves data accuracy. The choice between a cuvette-based or cuvette-free system fundamentally shapes the available workflow.

Cuvette-based systems provide a path to success through the manual selection of short pathlength cells, a method that is effective but requires additional hardware and introduces more manual steps. In contrast, modern microvolume systems with automated pathlength adjustment represent a paradigm shift, offering a seamless, rapid, and highly sample-conservative solution. For researchers in drug development and life sciences where sample volume and throughput are critical, the integrated, dilution-free strategies enabled by microvolume platforms present a compelling advantage for overcoming concentration challenges.

Within the broader context of evaluating cuvette versus cuvette-free UV-Vis systems for small sample volume research, the integrity of the data generated is directly dependent on instrument care. For cuvette-based systems, this hinges on impeccable handling of the sample containers and optical surfaces. Even in cuvette-free, microvolume systems, maintaining the instrument's integrated optical surfaces is paramount. This document provides detailed application notes and protocols for researchers and drug development professionals on proper cuvette handling, optical surface maintenance, and routine system verification to ensure data accuracy and instrument longevity.

Proper Cuvette Handling and Cleaning

Cuvettes are precision optical components, and their improper handling is a leading cause of error in UV-Vis spectroscopy [58]. The following protocols ensure accurate measurements and extend cuvette lifespan.

General Handling and Inspection

  • Handling: Always hold cuvettes by their opaque or frosted sides to prevent fingerprints on the optical surfaces [58] [59]. Never use metal tweezers or pliers, as they can scratch or break the cuvette [60].
  • Inspection: Before each use, visually inspect the cuvette for scratches, cracks, or contamination. Scratches can scatter light, while residues from previous analyses lead to imprecision and inaccuracy [47] [58]. Replace damaged cuvettes.
  • Filling and Orientation: Fill the cuvette about 2/3 to 3/4 full, ensuring the light path is completely covered and air bubbles are avoided [58]. When inserting the cuvette into the holder, align the transparent windows with the instrument's light path. Maintain a consistent orientation for all measurements, as indicated by any markings on the cuvette [58].

Comprehensive Cleaning Procedures

Residues must be completely removed after each use to prevent cross-contamination. The cleaning method depends on the sample type. Personal protective equipment (PPE) including lab coat, nitrile gloves, and safety glasses should always be worn [47].

Table 1: Cuvette Cleaning Procedures Based on Sample Type

Sample Solution Sample Type Cleaning Procedure
Aqueous [47] Protein, DNA, RNA, Biologics Empty cell. Wash with warm water and detergent. Rinse with dilute acid (e.g., 2M HCl). Perform a copious water rinse. Repeat 2-3 times.
Aqueous [47] Salt solution Rinse with warm water. Use a dilute acid rinse. Perform a copious water rinse. Repeat 2-3 times.
Organic [47] Oil, Alcohol, Acidic Solutions Operate in a fume hood. Rinse with a compatible solvent (e.g., acetone or ethanol). Perform a copious water rinse. Repeat 2-3 times.
General Final Steps [58] [60] All Types After rinsing, dry cuvettes using a stream of clean air or rinse with a volatile solvent like ethanol and allow to evaporate. Store in a protective case in a dust-free environment.

Cuvette Handling and Cleaning Workflow

The following diagram summarizes the logical workflow for proper cuvette handling, from preparation to storage.

The Scientist's Toolkit: Essential Materials for Cuvette Care

Table 2: Key Reagents and Materials for Cuvette Handling and Cleaning

Item Function
Lint-free Wipes / Lens Tissue [58] [59] To gently wipe optical surfaces without scratching. Avoids wood fibers found in standard tissue paper.
Neutral pH Detergent [47] [60] For initial cleaning of aqueous samples, including proteins and biologics.
Dilute Acid (e.g., 2M HCl or HNO₃) [47] Used as a rinse to remove residual contaminants after initial cleaning.
Compatible Solvents (e.g., Acetone, Ethanol) [47] [58] For rinsing and cleaning after organic samples. Essential for removing non-aqueous residues.
Protective Storage Case [58] For storing cleaned and dried cuvettes to prevent dust accumulation and physical damage.

System Verification and Performance Validation

Instrument validation is critical for diagnosing the state of a spectrophotometer and ensuring it offers adequate performance for product development and manufacturing [61]. It involves verifying key performance items as prescribed by standards like JIS K0115.

Key Validation Parameters and Protocols

The following parameters are essential for verifying instrument performance. Automated validation software can significantly reduce the effort and potential for error in these procedures [61].

Table 3: Key UV-Vis Spectrophotometer Performance Validation Parameters

Performance Item Description Validation Method & Protocol
Wavelength Accuracy [61] Verifies that the wavelength scale is correct. Measure a standard with known sharp emission/absorption peaks (e.g., deuterium lamp emission at 656.1 nm or holmium oxide filter). The difference between the measured peak wavelength and the known value is the wavelength accuracy.
Stray Light [61] Measures light outside the specified wavelength that reaches the detector. Use an aqueous solution that does not transmit light at a specific wavelength (e.g., sodium iodide for 220 nm). Measure the transmittance (Y) of this solution and the transmittance (X) with a shutter block. Stray light is defined as (Y - X).
Photometric Accuracy [61] Checks the accuracy of the absorbance or transmittance scale. Measure the absorbance of a known neutral density glass or liquid standard with certified absorbance values at specific wavelengths. Compare measured values to the certified values.
Noise Level [61] An indicator of the condition of the light source and optical system; affects data reproducibility. Measure the absorbance over one minute at a specific wavelength near 0 Abs. The noise level is the maximum deviation (peak-to-trough) of the signal. An increase in noise often indicates a lamp is nearing end-of-life.

System Verification and Maintenance Workflow

A regular schedule of verification and maintenance is recommended to continuously understand and manage the state of the instrument [61].

Cuvette vs. Microvolume Systems in Practice

The choice between cuvette and cuvette-free (microvolume) systems directly impacts sample handling and instrument care workflows.

Comparative Analysis for Small Sample Volumes

Table 4: Cuvette vs. Microvolume System Comparison for Small Sample Research

Aspect Cuvette-Based Systems Cuvette-Free (Microvolume) Systems
Sample Volume [34] [7] Typically requires volumes in the milliliter range (e.g., 1 mL for bacterial culture), though ultra-micro cuvettes exist. Designed for very small volumes, typically 1-2 µL, conserving precious samples.
Sample Conservation [34] Larger volume consumption; may require dilution for concentrated samples. Preserves the majority of the sample for downstream applications.
Pathlength [34] Fixed pathlength (commonly 10 mm). Sample may need dilution if absorbance is too high. Automatic pathlength selection (e.g., SmartPath) or software correction to handle a wide concentration range without dilution.
Cleaning & Maintenance [34] Requires careful cleaning and drying after each use, which is time-consuming and risks contamination or breakage. Simple cleanup by wiping the optical surfaces with a clean, dry lab wipe, reducing contamination risk.
Ideal Applications [34] [7] Kinetic assays (e.g., enzyme kinetics), samples in volatile organic solvents, OD600 measurements of microbial cultures. Routine nucleic acid and protein quantification, especially with high-concentration, water-based solutions from mini-preps.

Decision Framework for Sample Analysis

The choice between using a cuvette or a microvolume system depends on the specific sample characteristics and analytical requirements.

The analysis of small-volume samples is a critical requirement in modern research and drug development, making the choice of ultraviolet-visible (UV-Vis) spectroscopy system a fundamental consideration. This application note frames data quality challenges within the context of selecting between traditional cuvette-based systems and emerging cuvette-free (microvolume) technologies. UV-Vis spectroscopy operates on the principle of measuring the amount of discrete wavelengths of UV or visible light absorbed by or transmitted through a sample compared to a reference blank [1]. The fundamental relationship governing this measurement is the Beer-Lambert Law, which establishes that light absorption is directly proportional to both the concentration of the absorbing species and the pathlength the light travels through the sample [2]. For researchers working with precious or limited samples, the system choice directly impacts data quality through its influence on three key parameters: background noise, signal saturation, and solvent interference.

Cuvette-Based Systems

Traditional cuvette systems house samples in containers with defined optical windows and a fixed pathlength, most commonly 10 mm [11]. These systems require sample volumes typically ranging from several hundred microliters to milliliters, though specialized semi-micro and ultra-micro cuvettes are available for smaller volumes [62]. The material composition of the cuvette (e.g., glass, plastic, or quartz) is a critical factor for data quality, as standard plastic and glass cuvettes are inappropriate for UV absorption studies, while quartz cuvettes are essential for UV examination due to their transparency across most UV wavelengths [1].

Cuvette-Free (Microvolume) Systems

Cuvette-free systems, such as those employing microvolume technology, utilize surface tension to hold a very small sample droplet (e.g., 1 µL) between two optical surfaces without containment [2]. These systems often feature automatic pathlength selection technologies (e.g., SmartPath) that dynamically adjust the pathlength to optimize measurement across a wide concentration range, thereby eliminating the need for manual sample dilutions [2]. This capability is particularly valuable for concentrated samples that would otherwise exceed the linear dynamic range of fixed-pathlength systems.

Table 1: Comparative Analysis of UV-Vis System Configurations

Parameter Traditional Cuvette Systems Cuvette-Free Microvolume Systems
Typical Sample Volume 0.5 - 3.5 mL (standard); 50 - 500 µL (semi-micro) [62] 1 µL [2]
Pathlength Fixed (usually 10 mm) [11] Automatically or manually adjustable [2]
Optimal Concentration Range Limited by fixed pathlength; may require dilution Broad dynamic range (e.g., 0.75 - 37,500 ng/µL for dsDNA) [2]
Sample Cleanup Requires washing/drying; risk of contamination Wipe clean; reduced contamination risk [2]
Solvent Compatibility Suitable for aqueous and volatile organic solvents [2] Primarily for aqueous solutions [2]

Identifying and Rectifying Data Quality Issues

Background Noise and Stray Light

Identification: Background noise manifests as a non-zero baseline signal or excessive signal fluctuation in the absence of analyte. In cuvette systems, this can arise from scratched or dirty cuvettes, improper cuvette material selection, or solvent impurities. In microvolume systems, background noise may result from incomplete cleaning of the optical surfaces or light scattering from imperfect droplet formation.

Rectification Protocols:

  • Cuvette System Protocol:
    • Visually inspect cuvettes for defects under strong light.
    • Ensure cuvette material matches wavelength requirements: use quartz for UV measurements below ~300 nm and specialized plastic or glass for visible range only [11] [1].
    • Run a solvent blank to establish an accurate baseline, ensuring the blank uses the same solvent and cuvette as the sample [1].
  • Microvolume System Protocol:
    • Implement a rigorous cleaning procedure using lint-free lab wipes between samples.
    • Verify droplet integrity prior to measurement; a properly formed droplet should be held securely by surface tension.
    • Use high-purity, filtered solvents to minimize particulate contamination.

Signal Saturation

Identification: Signal saturation occurs when the absorbance value exceeds the linear range of the instrument (typically A > 1-1.5), resulting in a loss of quantitative accuracy and a flattening of spectral peaks. This is a common challenge when measuring highly concentrated samples.

Rectification Protocols:

  • Cuvette System Protocol:
    • Pathlength Reduction: Employ a cuvette with a shorter pathlength (e.g., 1 mm or 2 mm) to linearly reduce the absorbance signal [62].
    • Sample Dilution: Perform serial dilution of the sample until the absorbance falls within the linear range (A = 0.1-1.0). This introduces potential pipetting errors [2].
  • Microvolume System Protocol:
    • Automated Pathlength Adjustment: Utilize systems with technologies like SmartPath that automatically reduce the pathlength for concentrated samples, dynamically extending the upper concentration limit without dilution [2].
    • For systems without automatic adjustment, manually select a shorter software-defined pathlength.

G Signal Saturation Troubleshooting Start Observed Absorbance > 1.5 CheckSystem Check UV-Vis System Type Start->CheckSystem CuvettePath Cuvette System Path CheckSystem->CuvettePath Cuvette-Based MicrovolumePath Microvolume System Path CheckSystem->MicrovolumePath Cuvette-Free Option1 Reduce Pathlength (Use shorter cuvette) CuvettePath->Option1 Option2 Dilute Sample CuvettePath->Option2 Option3 Automated Pathlength Adjustment (SmartPath) MicrovolumePath->Option3 Resolved Absorbance in Linear Range Option1->Resolved Option2->Resolved Option3->Resolved

Solvent Interference

Identification: Solvent interference includes unwanted absorbance from the solvent itself or physicochemical interactions that distort the signal. Common issues include UV-absorbing solvents, evaporation during measurement, and meniscus effects in cuvettes.

Rectification Protocols:

  • Cuvette System Protocol for Volatile Solvents:
    • Use sealed cuvettes with screw caps or Teflon lids to minimize evaporation [62].
    • Select a solvent with a UV cutoff below your measurement wavelength. For example, use spectral-grade solvents for high-sensitivity UV work.
    • Always use a matched solvent blank in the same type of cuvette as the sample [1].
  • Microvolume System Limitations and Solutions:
    • Acknowledged Limitation: Microvolume systems are generally not recommended for volatile organic solvents (e.g., ethanol, acetone, chloroform) because the small, exposed droplet evaporates rapidly, leading to significant concentration changes and inaccurate results [2].
    • Alternative Protocol: For aqueous-based samples with low volatility, microvolume systems excel and eliminate meniscus effects that can cause light scattering in cuvettes.

Table 2: Troubleshooting Guide for Common Data Quality Issues

Issue Primary Symptoms Cuvette-Based Solution Cuvette-Free Solution
Background Noise High baseline absorbance; signal instability Use quartz cuvettes for UV; proper blanking [1] Meticulous cleaning of optical surfaces [2]
Signal Saturation Absorbance > 1.5; peak tops are flattened Dilution or shorter pathlength cuvette [62] Rerun with automated pathlength reduction [2]
Solvent Interference Solvent peaks mask analyte; evaporation drift Use sealed cuvettes; select transparent solvent [2] [62] Restrict use to non-volatile, aqueous solutions [2]
Light Scattering Noisy signal; elevated baseline at low λ Use filtered solvents; ensure clean cuvettes Ensure proper droplet formation without bubbles

The Scientist's Toolkit: Research Reagent Solutions

Table 3: Essential Materials for Small-Volume UV-Vis Analysis

Item Function/Application Technical Notes
Quartz Cuvettes (UV-Grade) Sample containment for UV range measurements. Transparent down to ~200 nm; required for UV studies below ~300 nm [1].
Disposable Methacrylate Cuvettes Sample containment for visible range measurements. Low-cost; only for measurements above ~300 nm [11].
High-Purity Water (HPLC Grade) Preparation of blanks and sample dilution. Minimizes particulate and UV-absorbing contaminants.
Lint-Free Laboratory Wipes Cleaning optical surfaces in microvolume systems. Essential for preventing cross-contamination [2].
Sealed Cuvettes with Caps Analysis of volatile organic solvents. Prevents evaporation; maintains stable pathlength [2].
Compatible Solvent Blanks Baseline correction for specific solvents. Must match the solvent, cuvette, and pathlength of the sample [1].

Experimental Protocols for Quality Control

Protocol 1: System Suitability Test for Microvolume Measurements

This protocol verifies the performance of a cuvette-free system for nucleic acid quantification, a common application.

  • Instrument Calibration: Ensure the instrument is powered and warmed up according to manufacturer specifications.
  • Blank Measurement: Apply 1 µL of pure, nuclease-free water (or your elution buffer) to the measurement pedestal and perform a blank measurement. This sets the 0 absorbance baseline [2].
  • Standard Measurement: Apply 1 µL of a known dsDNA standard (e.g., 100 ng/µL λ-DNA) and measure the absorbance.
  • Data Quality Assessment: Verify that the A260/A280 ratio is between 1.8-1.9 and the A260/A230 ratio is >2.0. The concentration reading should be within 5% of the known standard value.
  • Cleanup: Thoroughly wipe both the upper and lower optical surfaces with a clean, dry, lint-free lab wipe [2].

Protocol 2: Pathlength Verification and Absorbance Linearity Check

This protocol is critical for cuvette-based systems to confirm the effective pathlength and linear dynamic range.

  • Preparation: Prepare a series of dilutions from a stable, standardized analyte (e.g., potassium dichromate in 0.005 M Hâ‚‚SOâ‚„) covering an expected absorbance range of 0.05 to 2.0.
  • Cuvette Selection: Use a clean, scratch-free quartz cuvette of the stated pathlength (e.g., 10 mm).
  • Measurement: Measure the absorbance of each standard at the relevant wavelength (e.g., 350 nm for potassium dichromate). Always use the matching solvent as a blank [1].
  • Data Analysis: Plot absorbance vs. known concentration. The data should be linear (R² > 0.999). The effective pathlength (L) can be calculated using the Beer-Lambert Law (A = εLc) if the molar absorptivity (ε) of the standard is known.
  • Interpretation: A deviation from the expected linearity or pathlength indicates potential issues with the cuvette or instrument calibration.

G Sample Measurement Workflow Start Start Measurement Blank Measure Blank (Solvent only) Start->Blank ApplySample Apply/Load Sample Blank->ApplySample CheckSignal Check Absorbance ApplySample->CheckSignal LowSignal A < 0.1 CheckSignal->LowSignal Too Low GoodSignal 0.1 ≤ A ≤ 1.0 CheckSignal->GoodSignal Optimal HighSignal A > 1.0 CheckSignal->HighSignal Too High Concentrate Concentrate Sample LowSignal->Concentrate Record Record Data GoodSignal->Record Dilute Dilute Sample or Reduce Path HighSignal->Dilute Cuvette System Dilute->Blank Concentrate->Blank

Optimal data quality control in UV-Vis spectroscopy for small sample volumes requires a strategic understanding of the strengths and limitations of both cuvette and cuvette-free systems. Cuvette-free microvolume systems provide superior performance for routine analysis of aqueous nucleic acid and protein samples, offering significant sample conservation and eliminating dilution errors for concentrated samples. Traditional cuvette systems remain essential for applications involving volatile solvents, kinetic assays, and specific light-scattering measurements like OD600. By implementing the detailed protocols for identifying and rectifying background noise, signal saturation, and solvent interference outlined in this application note, researchers and drug development professionals can ensure the generation of robust, reliable, and reproducible spectroscopic data, irrespective of the platform chosen.

Head-to-Head Comparison: Validating Performance for Your Specific Research Needs

Ultraviolet-Visible (UV-Vis) spectrophotometry is a foundational technique in research and drug development for quantifying nucleic acids, proteins, and monitoring assays. A pivotal decision in method development is selecting the sample presentation system: traditional cuvettes or modern cuvette-free microvolume systems. This application note provides a direct, data-driven comparison of these technologies, focusing on sample volume, pathlength flexibility, cost, and throughput to guide researchers in optimizing their workflows for small-volume samples.

Direct Feature Comparison

The choice between cuvette and microvolume systems involves trade-offs across several operational parameters. The following table summarizes a direct comparison of key features to aid in the selection process.

Feature Cuvette-Based Systems Cuvette-Free (Microvolume) Systems
Typical Sample Volume 0.5 mL to 3 mL (for standard 10 mm path) [25] 1–2 µL (0.001–0.002 mL) [34] [63]
Pathlength Flexibility Fixed physical pathlength (e.g., 10 mm); requires different cuvettes for change [64]. Automatically variable (e.g., 0.2 mm to 1.0 mm); technology like SmartPath adjusts pathlength to keep absorbance within linear range [34].
Cost Considerations Instrument Cost: Entry-level models from $1,500; high-end models can exceed $50,000 [65].Consumable Cost: Reusable quartz cuvettes are a high initial investment; disposable plastic cuvettes and cleaning add recurring costs [66]. Instrument Cost: Often in the mid-to-high range of spectrophotometer pricing [65].Consumable Cost: Minimal to none; no cuettes required, reducing long-term expenses [34].
Throughput (Samples/Time) Low to Moderate: Sequential measurement of individual samples; cleaning required between samples, slowing process [25]. High: Rapid measurement cycle (seconds per sample); no cleanup between samples, enabling fast processing of multiple samples [34].
Best Suited Applications - Kinetic assays (e.g., enzyme activity) [34]- Samples in volatile organic solvents [34]- Light scattering measurements like OD600 [34]- High-precision single-sample analysis [25] - Routine nucleic acid and protein quantification [34] [63]- Quality control of precious, limited-volume samples [34]- High-throughput screening workflows [63]

Experimental Protocols for Small-Volume Sample Analysis

Protocol: Microvolume Nucleic Acid Quantification and Purity Assessment

This protocol is designed for the rapid quantification of DNA or RNA and assessment of sample purity using a microvolume spectrophotometer, requiring only 1–2 µL of sample [34] [63].

Research Reagent Solutions
Item Function/Benefit
Microvolume Spectrophotometer Instrument with pedestal technology for measuring 1–2 µL samples without cuvettes [34].
Purified Water or Elution Buffer Serves as the blank solution to calibrate the instrument.
Lint-Free Lab Wipes For cleaning the measurement surfaces between samples to prevent cross-contamination [34].
dsDNA, ssDNA, or RNA Sample The analyte of interest, diluted in the same buffer used for the blank.
Step-by-Step Procedure
  • Instrument Initialization: Power on the microvolume spectrophotometer and the accompanying software. Select the application for "Nucleic Acid" measurement.
  • Blank Measurement: Apply 1–2 µL of your purified water or elution buffer to the lower measurement pedestal. Close the arm to form the liquid column. Execute the "Blank" or "Calibrate" command in the software.
  • Sample Measurement: Wipe the pedestal clean with a lint-free wipe. Apply 1–2 µL of your nucleic acid sample to the pedestal. Close the arm and initiate the measurement. The instrument automatically determines the optimal pathlength and records the absorbance values [34].
  • Data Collection and Analysis:
    • The software will calculate the concentration (in µg/mL or ng/µL) using built-in extinction coefficients (e.g., 50 µg/mL for dsDNA for 1 Abs unit at 260 nm) [67].
    • Record the absorbance ratios A260/A280 and A260/A230. Pure DNA typically has an A260/A280 ratio of ~1.8, while pure RNA is ~2.0. The A260/A230 ratio should be >2.0 for pure samples [67].
  • Cleanup: Wipe the sample from the pedestals with a clean, dry lab wipe. The instrument is ready for the next sample [34].

Protocol: Small-Volume Cuvette Measurement for Kinetic Assays

This protocol details how to perform a continuous enzyme kinetic assay using a small-volume (e.g., 50 µL) quartz cuvette, leveraging the stable, sealed environment necessary for such studies [34].

Research Reagent Solutions
Item Function/Benefit
Spectrophotometer with Cuvette Port An instrument capable of kinetic (time-based) measurements and compatible with small-volume cuvettes.
Semi-Micro Quartz Cuvette Quartz allows UV light transmission; small volume (e.g., 50-500 µL) conserves reagents [67].
Enzyme Solution The catalyst whose activity is being measured.
Substrate Solution The compound converted by the enzyme, often to a product with a distinct absorbance spectrum.
Reaction Buffer Provides the optimal pH and ionic environment for the enzymatic reaction.
Step-by-Step Procedure
  • Instrument Setup: Power on the spectrophotometer. Select the kinetic mode and set the wavelength to monitor the product formation or substrate depletion (e.g., 405 nm for p-nitrophenol). Set the total run time and measurement interval.
  • Blank Preparation and Calibration: Pipette the complete reaction mixture minus the enzyme (e.g., buffer and substrate) into the cuvette. Place the cuvette in the holder, close the lid, and set the absorbance to zero.
  • Reaction Initiation and Measurement: Remove the cuvette. Add a small, precise volume of enzyme solution to the cuvette, mix rapidly by pipetting or inversion, and immediately return the cuvette to the instrument. Start the kinetic measurement promptly. The sealed cuvette prevents evaporation during the run [34].
  • Data Analysis: The software will generate a plot of absorbance vs. time. The initial linear slope of this curve represents the initial velocity of the reaction.

Technology Selection Workflow

The following diagram illustrates the decision process for choosing between cuvette and microvolume systems based on key experimental parameters.

G Technology Selection Workflow start Define Experimental Needs volume Sample Volume Limited? start->volume kinetics Kinetic or Volatile Solvents? volume->kinetics No (≥ 50 µL) microvol Select Microvolume System volume->microvol Yes (1-2 µL) throughput High Throughput Required? kinetics->throughput No cuvette Select Cuvette System kinetics->cuvette Yes throughput->microvol Yes throughput->cuvette No

For the core thesis of optimizing UV-Vis systems for small sample volumes, the data strongly supports the adoption of cuvette-free microvolume instruments. Their unmatched efficiency in sample conservation (1 µL), operational speed, and elimination of consumable costs make them the superior choice for routine quantification of nucleic acids and proteins in research and drug development contexts [34] [63]. However, traditional cuvette systems retain their indispensable role for specialized applications requiring a stable, sealed environment, such as kinetic assays and studies involving volatile solvents [34]. The optimal instrument choice is therefore not a matter of which technology is universally better, but which is most appropriate for the specific experimental requirements and constraints of the workflow.

The quantification of biomolecules such as nucleic acids and proteins is a foundational step in biomedical research and drug development. For laboratories working with precious, limited-quantity samples, the choice between traditional cuvette-based and modern cuvette-free UV-Vis spectrophotometers is critical, with significant implications for data accuracy, reproducibility, and workflow efficiency. Cuvette-free, or microvolume, systems use surface tension to hold a 1-2 µL droplet of sample between optical surfaces, while traditional systems require larger volumes housed within a cuvette [34]. This application note, framed within a broader thesis on comparative system performance, provides a structured analysis of the performance characteristics of both approaches. It delivers validated experimental protocols and quantitative data to guide scientists in selecting the optimal technology for their specific sensitivity and volume requirements.

Technology Comparison: Cuvette vs. Cuvette-Free Systems

The decision between cuvette and cuvette-free systems is not a matter of one being universally superior, but rather of matching the technology to the application. The table below summarizes the core characteristics, strengths, and ideal use cases for each system.

Table 1: Comparative Analysis of Cuvette and Cuvette-Free UV-Vis Systems

Feature Cuvette-Based Systems Cuvette-Free (Microvolume) Systems
Typical Sample Volume 0.1 mL to 3.5 mL (standard) [12] 0.5 µL to 2 µL [34] [68]
Pathlength Fixed (e.g., 10 mm) [69] Automatically adjusted or corrected (e.g., 0.2 mm or 1 mm) [34] [68]
Key Strengths Ideal for volatile solvents, kinetic assays, and light-scattering measurements like OD600 [34] Excellent for small samples, high concentrations; eliminates dilution and saves sample [34]
Sample Integrity Closed container reduces evaporation [34] Risk of rapid evaporation with volatile solvents [34]
Throughput & Cleanup Requires washing/replacement; more time-consuming [34] Wipe-and-clean cleanup; minimal risk of carryover [34]
Best For Kinetic studies, microbial growth (OD600), samples in organic solvents [34] Routine nucleic acid/protein quantification, limited/ precious samples [34]

Quantitative Performance Data

To make an evidence-based decision, it is essential to consider the quantitative performance of each system. The following tables summarize key data on reproducibility and dynamic range obtained from recent instrumental studies.

Microvolume System Reproducibility Data

A study evaluating a one-drop microvolume accessory demonstrates the high reproducibility of this technology. Using a 1 mm pathlength cell and calf thymus DNA, the instrument achieved excellent precision across a wide concentration range [68].

Table 2: Absorbance Measurement Reproducibility of a Microvolume System (1 mm pathlength)

DNA Concentration (ng/µL) Average Absorbance (260 nm) Standard Deviation (Abs) Coefficient of Variation (%)
0 0.0004 0.0012 N/A
9.6 0.0171 0.0016 9.6
38.6 0.0683 0.0011 1.6
77.2 0.131 0.0015 1.2
308.8 0.514 0.0047 0.9
617.5 1.001 0.0089 0.9

Similar high reproducibility was observed with a shorter 0.2 mm pathlength cell, which is used for measuring higher concentration samples, with CV values consistently at 0.9% or lower for concentrations at 38.6 ng/µL and above [68].

Dynamic Range of Cuvette-Based Systems

Modern cuvette spectrophotometers can achieve an extensive dynamic range by allowing the user to select cuvettes with different pathlengths. This flexibility is crucial for measuring highly concentrated samples without requiring dilution.

Table 3: Extended Dynamic Range via Pathlength Selection in a Cuvette Spectrophotometer

Application Available Pathlengths Extended Concentration Range Example
Nucleic Acid Quantification 0.125 mm to 10 mm [70] Up to 75 ng/µL dsDNA with a 0.125 mm pathlength [70]
Protein Quantification (A280) 0.125 mm to 10 mm [70] Up to 750 mg/mL BSA with an ultra-short pathlength [70]
Colorimetric Assays (e.g., BCA) 10 mm (standard) [70] Optimized standard curves for assays like BCA, Bradford, and Lowry [70]

Experimental Protocols

Protocol 1: Nucleic Acid Quantification and Purity Assessment using a Cuvette-Free System

This protocol is designed for the rapid quantification of DNA or RNA in a microvolume instrument, requiring only 1 µL of sample [34].

1. Research Reagent Solutions

  • Sample: Purified DNA or RNA sample, dissolved in a compatible aqueous buffer (e.g., TE buffer or nuclease-free water).
  • Blank Solution: The same buffer used to dissolve the sample (e.g., TE buffer or nuclease-free water) [1].
  • Cleaning Agent: Lint-free laboratory wipes and, if necessary, 70% ethanol for cleaning the optical surfaces.

2. Procedure 1. System Initialization: Power on the instrument and allow it to initialize. Select the "Nucleic Acid" application from the home screen. 2. Blank Measurement: Using a calibrated pipette, deposit 1 µL of the blank buffer onto the lower optical measurement surface. Close the lid and initiate the blank measurement. The instrument will automatically measure and subtract the background contribution of the buffer [34]. 3. Sample Measurement: Carefully wipe the optical surfaces clean with a dry, lint-free lab wipe. Deposit 1 µL of your nucleic acid sample onto the lower optical surface. Close the lid and initiate the measurement. The instrument's software (e.g., SmartPath technology) automatically determines the optimal pathlength and calculates the concentration based on the absorbance at 260 nm [34]. 4. Purity Assessment: Record the absorbance ratios 260/280 and 260/230 provided by the instrument. A 260/280 ratio of ~1.8 is generally indicative of pure DNA, while ~2.0 is expected for pure RNA. A 260/230 ratio should typically be above 2.0 [70]. 5. Cleanup: Wipe the sample from the optical surfaces with a clean, lint-free wipe. The system is ready for the next sample.

The workflow for this protocol is summarized in the following diagram:

Start Start Nucleic Acid QC Init Initialize Instrument & Select App Start->Init Blank Deposit 1 µL Blank Buffer Measure Blank Init->Blank Clean1 Wipe Surfaces Clean Blank->Clean1 Sample Deposit 1 µL Sample Measure Sample Clean1->Sample Software Automated Pathlength & Concentration Calculation Sample->Software Purity Record A260/280 & A260/230 Ratios Software->Purity Clean2 Wipe Surfaces Clean Purity->Clean2 End Analysis Complete Clean2->End

Protocol 2: Kinetic Enzyme Assay using a Cuvette-Based System

This protocol outlines the steps for performing a kinetic assay to monitor enzyme activity over time, an application best suited for a temperature-controlled cuvette spectrophotometer [34] [70].

1. Research Reagent Solutions

  • Cuvette: A quartz cuvette is required for UV measurements below 300 nm. For visible range assays, a glass or UV-transparent plastic cuvette may be used [69] [12].
  • Reaction Buffer: An appropriate aqueous buffer to maintain pH and ionic strength for the enzyme.
  • Enzyme: The enzyme of interest, typically diluted in a stable storage buffer.
  • Substrate: The compound converted by the enzyme into a product.

2. Procedure 1. System Setup: Power on the spectrophotometer and select the kinetics application. Set the temperature control to the desired reaction temperature (e.g., 37°C). Set the measurement parameters: primary wavelength (e.g., 340 nm for NADH consumption), measurement interval (e.g., every 10 seconds), and total run time (e.g., 10 minutes) [70]. 2. Prepare Reaction Mixture: Pipette the appropriate volume of reaction buffer and substrate into the cuvette. The total volume should be sufficient for the cuvette's pathlength (e.g., 1 mL for a semi-micro cuvette). Place the cuvette in the thermally controlled holder and allow it to equilibrate for 1-2 minutes. 3. Establish Baseline: Initiate the kinetic measurement and monitor the absorbance for approximately 30-60 seconds to establish a stable baseline. 4. Initiate Reaction: Pause the measurement, if possible. Carefully add the pre-diluted enzyme to the cuvette. Rapidly mix the solution by inverting a sealed cuvette or pipetting up and down gently. Place the cuvette back in the holder and resume data collection immediately. 5. Data Collection and Analysis: The instrument will record the change in absorbance over time. After the run, the software can be used to calculate the reaction rate, typically by determining the slope of the linear portion of the absorbance vs. time plot.

The workflow for this kinetic assay is as follows:

Start Start Kinetic Assay Setup Configure Instrument: Wavelength, Interval, Duration Start->Setup Temp Set Temperature Control (e.g., 37°C) Setup->Temp Prep Prepare Cuvette with Buffer & Substrate Temp->Prep Equil Thermal Equilibration in Holder Prep->Equil Baseline Measure Baseline Absorbance Equil->Baseline Initiate Add Enzyme & Mix Baseline->Initiate Monitor Monitor Absorbance Change Over Time Initiate->Monitor Analyze Calculate Reaction Rate from Slope Monitor->Analyze End Kinetic Analysis Complete Analyze->End

The Scientist's Toolkit: Essential Materials

Selecting the correct materials is paramount for ensuring accurate and reproducible spectroscopic results.

Table 4: Essential Research Reagent Solutions and Materials for UV-Vis Spectroscopy

Item Function/Application Critical Considerations
Quartz Cuvettes (UV-Grade) Holding samples for UV-range measurements (<300 nm) [69]. Essential for nucleic acid (260 nm) and protein (280 nm) quantification [69] [12]. Resists most solvents but is incompatible with hydrofluoric acid [69].
Optical Glass Cuvettes Holding samples for visible-range measurements (>340 nm) [12]. Cost-effective for colorimetric assays (e.g., BCA, Bradford) and OD600 [34] [12]. Not suitable for UV light.
Disposable Plastic Cuvettes Holding samples for visible-range measurements where cross-contamination is a concern [12]. Ideal for teaching labs or quick OD600 checks. Low cost but poor UV transparency and can be degraded by organic solvents [69] [12].
Certified Reference Material (CRM) Verifying the photometric accuracy and precision of the spectrophotometer [71]. A solution of known concentration and absorbance (e.g., potassium dichromate) used for instrument qualification and validation to ensure "fitness for purpose" [71].
Aqueous Buffer (e.g., TE Buffer) Serves as the sample solvent and blank solution [1]. The blank must be optically pure and match the pH and ionic strength of the sample solution to correctly establish the baseline absorbance [1].

For researchers and drug development professionals selecting UV-Vis systems for small sample volumes, the decision extends beyond the initial price tag. A comprehensive Total Cost of Ownership (TCO) analysis reveals the long-term financial implications of choosing between traditional cuvette-based systems and modern cuvette-free alternatives. This assessment must encompass upfront instrumentation costs, recurring consumable expenses, operational efficiency factors, and maintenance requirements over the instrument's operational lifespan. The growing focus on micro-volume analysis in life sciences research—particularly for nucleic acid quantification, protein assays, and kinetic studies—makes this evaluation particularly relevant, as sample volume requirements directly influence both consumable usage and experimental flexibility. This application note provides a structured framework for conducting a TCO analysis specific to UV-Vis systems, enabling informed, cost-effective procurement decisions that align with both research objectives and budgetary constraints.

Quantitative Cost Comparison: Cuvette vs. Cuvette-Free Systems

The total cost of ownership for UV-Vis systems comprises several direct and indirect cost components distributed across the instrument lifecycle. The following tables summarize key cost differentiators between system types.

Table 1: Upfront and Consumable Cost Breakdown

Cost Component Cuvette-Based Systems Cuvette-Free Systems
Instrument Price Range $1,500 - $50,000+ [65] Primarily high-end of spectrum (>$15,000) [65]
Common Cuvette Cost per Unit Plastic: $ (Low)Optical Glass: $$ (Medium)Quartz (UV): $$$ (High) [15] Not applicable
Annual Cuvette Cost (Est.) $200 - $1,000+ (varies with material, reuse, and usage volume) $0
Additional Accessories Cuvette holders, specialized racks, cleaning supplies [72] Minimal

Table 2: Operational and Long-Term Cost Factors

Factor Cuvette-Based Systems Cuvette-Free Systems
Sample Volume Typically ≥ 50 μL to 3.5 mL (standard) [14] 1-2 μL (common for micro-volume) [7]
Sample Preparation Time Higher (cleaning, risk of cross-contamination) [15] Lower (no cleaning between samples)
Consumable Disposal Required (plastic) or cleaning (glass/quartz) Minimal waste
Typical Maintenance Lamp replacement, cuvette re-purchasing [65] Lamp replacement [65]
Risk of Cost Volatility Subject to supply chain and material cost increases [73] Limited to service contracts

Experimental Protocol for Cost-Benefit Analysis

This protocol provides a methodology to empirically evaluate the operational efficiency and practical costs of cuvette-based and cuvette-free workflows in a research setting.

Materials and Equipment

  • UV-Vis Spectrophotometers: One cuvette-based instrument (e.g., PASCO SE-3607 [74]) and one cuvette-free/micro-volume instrument (e.g., Blue-Ray EzDrop series [7] or equivalent).
  • Consumables: Quartz cuvettes (for UV work) [72], optical glass cuvettes (for VIS work) [15], and appropriate pipette tips.
  • Reagents: Bovine serum albumin (BSA) solution for protein standard curve, nucleic acid samples, or any other relevant analytes [75].
  • Timing device, laboratory notebook, and cost-tracking sheet.

Procedure: Workflow Efficiency Assessment

  • System Calibration: Calibrate both instruments according to manufacturer instructions using appropriate blanks.
  • Standard Curve Generation:
    • Prepare a dilution series of BSA standard (e.g., 0.1 - 2.0 mg/mL).
    • For the cuvette-based system: Pipette each standard into a clean cuvette, measure absorbance, and clean the cuvette thoroughly between samples [72] [15].
    • For the cuvette-free system: Pipette each standard directly onto the measurement pedestal for analysis.
    • Record the time taken to complete the standard curve for each system.
  • Sample Analysis:
    • Using a single, unknown concentration of BSA or nucleic acid, perform 10 replicate measurements.
    • For the cuvette-based system, clean the cuvette between each replicate.
    • Record the total time taken for 10 replicates on each system.
  • Data Recording and Analysis:
    • Calculate the coefficient of variation for the replicate measurements to assess precision.
    • Calculate the average time per sample for each system.

Data Interpretation and TCO Calculation

  • Operational Efficiency: The system with a lower average time per sample offers higher throughput and lower labor costs.
  • Consumable Cost Projection:
    • Based on the experiment and projected annual sample volume, estimate the number of cuvettes (disposable or reusable) required.
    • Using current list prices, project annual consumable costs.
  • Total Cost of Ownership Modeling:
    • Use the following formula to project a 5-year TCO: TCO = Instrument Price + (Annual Consumable Cost * 5) + (Annual Maintenance Cost * 5) + (Estimated Labor Cost Impact)
    • Labor cost can be estimated from the time difference per sample, annual sample volume, and an appropriate hourly rate for a research technician.

System Selection Workflow and Financial Decision Modeling

The following diagram illustrates the logical pathway for selecting the most cost-effective UV-Vis system based on key application requirements and financial considerations.

G Start Start: System Selection A Primary Wavelength Requirement? Start->A E UV Range (<340 nm) Required? A->E Yes F Primarily Visible Light Applications? A->F No B Consider Cuvette-Free System C Sample Volume per Analysis? I Larger Volumes (≥ 50 µL) Available? C->I D Consider Cuvette-Based System H Small Volumes (1-2 µL) & Minimal Sample? E->H K Optical Glass Cuvettes Sufficient (Lower Cost) F->K G Requires High-Throughput or Kinetic Studies? G->B High-Throughput G->D Standard Kinetics H->B Yes J Quartz Cuvettes Needed (Higher Cost) H->J No I->D Yes I->G No J->D K->C

The Scientist's Toolkit: Essential Research Reagent Solutions

The following reagents and materials are fundamental to the experiments cited in this protocol and for general UV-Vis spectrophotometry in life sciences research.

Table 3: Key Research Reagents and Materials

Item Function / Application Notes for Cost Analysis
Quartz Cuvettes Essential for absorbance measurements in the UV range (190-400 nm) [72] [15]. Highest cost cuvette type; reusable but fragile. Represents a recurring consumable cost [72] [73].
Optical Glass Cuvettes Suitable for measurements in the visible light spectrum (340-2500 nm) [15]. Lower cost than quartz; reusable. A cost-effective choice for visible light assays [15].
BSA (Bovine Serum Albumin) A standard protein used for generating calibration curves in protein quantification assays (e.g., Bradford, BCA) [75]. Standard reagent cost.
Bradford / BCA Assay Reagent Used for colorimetric quantification of protein concentration [75] [76]. Standard reagent cost.
Sodium Lauryl Sulfate (SLS) Used in specific hemoglobin quantification methods; offers a safer alternative to cyanmethemoglobin-based methods [75]. Can reduce costs associated with hazardous waste disposal.

A thorough Total Cost of Ownership analysis demonstrates that the most economically favorable UV-Vis system is highly dependent on specific research applications and workflow patterns. Cuvette-free systems present a compelling financial case for laboratories focused on micro-volume nucleic acid and protein quantification, where savings from eliminated consumable costs and enhanced operational efficiency can offset higher initial instrument investment. Conversely, for research requiring UV wavelengths, larger sample volumes, or specialized kinetic studies, traditional cuvette-based systems remain essential, though their long-term costs are significantly influenced by cuvette material selection and handling practices. Researchers are advised to model the TCO based on their projected sample volume, wavelength requirements, and throughput needs to make a strategically and financially sound instrumentation decision.

In the fast-paced environment of modern drug development, the efficiency of analytical techniques is paramount. This application note provides a detailed comparative analysis of two predominant methodologies for ultraviolet-visible (UV-Vis) spectroscopic analysis of small sample volumes: traditional cuvette-based systems and emerging cuvette-free systems. The core of this investigation focuses on quantitative and qualitative metrics of workflow efficiency, including time-to-result, sample preparation overhead, and overall ease of use. UV-Vis spectroscopy is a fundamental technique for quantifying nucleic acids, proteins, and other biomolecules, making the optimization of its workflow a significant factor in accelerating research and development timelines [1]. We frame this comparison within the context of a broader thesis exploring the most effective UV-Vis systems for handling the precious, small-volume samples common in early-stage drug discovery.

The following data and protocols are designed to assist researchers, scientists, and development professionals in making an informed, data-driven selection between these two technological approaches, ultimately enhancing laboratory productivity and conserving valuable resources.

Technical Comparison & Quantitative Data

The choice between cuvette and cuvette-free systems involves trade-offs between sample volume, analytical performance, and operational workflow. The table below summarizes the key technical specifications and performance characteristics of both systems.

Table 1: Technical and Operational Comparison of Cuvette vs. Cuvette-Free Systems for Small Volumes

Parameter Cuvette-Based Systems Cuvette-Free Systems
Typical Minimum Sample Volume ~50 µL (semi-micro) to 350 µL (standard) [12] [14] < 2 µL [1]
Standard Pathlength 10 mm (and other variants) [12] [16] < 1 mm (miniaturized, fixed) [1]
Sample Preparation Overhead High (requires pipetting into cuvette, cleaning/validation if reusable) [77] [78] Minimal (direct pipetting onto measurement surface)
Time-per-Sample (Incl. Cleaning) ~5-20 minutes (if reusing quartz) [77] < 1 minute
Risk of Cross-Contamination Moderate to High (if cleaning is inadequate) [77] Very Low (single-use surface or automated cleaning)
Consumable Cost per Sample Low (plastic) to High (quartz, considering initial purchase) Moderate (per-analysis cost)
Data Quality (Absorbance Linear Range) Excellent (standard 10 mm pathlength) [1] Good (shorter pathlength may require dilution of concentrated samples) [1]
Primary Application Fit High-precision analysis, broad wavelength work (UV-Vis-NIR), applications requiring variable pathlengths [12] [79] Rapid quality checks (e.g., nucleic acid/purity ratios, protein quantification), and analysis of precious, low-volume samples [1]

Experimental Protocols

To objectively assess the workflow efficiency of both systems, the following standardized protocols can be implemented. These methodologies focus on a common application in drug development: the quantification and purity assessment of nucleic acids (A260/A280 ratio).

Protocol A: Nucleic Acid Analysis Using a Cuvette-Based System

Research Reagent Solutions & Essential Materials

  • Cuvette: Select a quartz cuvette for UV transparency below 300 nm [12] [79]. A semi-micro volume (e.g., 0.35-0.7 mL) is recommended to conserve sample [12] [14].
  • Blank Solution: The same buffer used to suspend the nucleic acid sample (e.g., TE buffer or nuclease-free water).
  • Sample: DNA or RNA solution of unknown concentration.
  • Micropipettes & Tips: With appropriate volume range and plastic tips to avoid scratching the cuvette [78].
  • Lint-Free Wipes: For cleaning the cuvette's optical surfaces [80].
  • UV-Vis Spectrophotometer: Compatible with the selected cuvette format.

Detailed Methodology

  • System Initialization: Power on the spectrophotometer and allow it to initialize. Set the instrument to measure absorbance at 260 nm and 280 nm.
  • Cuvette Preparation: If using a reusable quartz cuvette, ensure it has been thoroughly cleaned. A rigorous cleaning process can take 20+ minutes to eliminate all contaminants and prevent sample carryover [77].
  • Blank Measurement: Securely place the clean, empty cuvette in a rack. Pipette the blank solution into the cuvette, filling it to a maximum of 4/5 of its capacity to prevent spills [78] [16]. Wipe the external optical surfaces with a lint-free wipe to remove any droplets or fingerprints [80]. Place the cuvette in the instrument and perform a blank measurement.
  • Sample Measurement: Carefully remove the cuvette from the instrument. Pipette out the blank solution. Pipette the nucleic acid sample into the cuvette, again filling to ~80% capacity. Check for and remove any air bubbles by gently tapping the cuvette, and ensure the sample is homogeneously mixed [78]. Wipe the exterior and place the cuvette in the spectrophotometer. Measure the absorbance at 260 nm and 280 nm.
  • Post-Analysis Cleaning: Immediately after measurement, empty the sample and begin the multi-step cleaning process for the quartz cuvette to prevent residue adhesion, which represents a significant time investment [77].

Protocol B: Nucleic Acid Analysis Using a Cuvette-Free System

Research Reagent Solutions & Essential Materials

  • Blank Solution: The same buffer used to suspend the nucleic acid sample.
  • Sample: DNA or RNA solution of unknown concentration.
  • Micropipettes & Tips: With appropriate volume range (typically 0.5-2 µL).
  • Absorbance Cards/Slides (if applicable): Disposable, specialized surfaces for sample retention.
  • Cuvette-Free UV-Vis Spectrophotometer: Equipped with micro-volume measurement technology.

Detailed Methodology

  • System Initialization: Power on the cuvette-free spectrophotometer. The instrument will typically perform a self-check.
  • System Blanking: Pipette a 0.5-1 µL droplet of the blank solution directly onto the instrument's measurement surface. Initiate the blanking procedure via the software. The system will automatically check the droplet and then clean the surface.
  • Sample Measurement: Pipette a 0.5-1 µL droplet of the nucleic acid sample directly onto the same measurement surface. Initiate the measurement. The instrument will draw the sample into a virtual pathlength and record the absorbance spectrum (including A260 and A280) within seconds.
  • Post-Analysis: The instrument automatically cleans and dries the measurement surface after each analysis, preparing it for the next sample. No manual washing is required.

The dramatic difference in these workflows is visualized in the following diagram.

WorkflowComparison cluster_cuvette Cuvette-Based Workflow cluster_free Cuvette-Free Workflow start Start Nucleic Acid Analysis A1 Clean Quartz Cuvette (~5-20 min) start->A1 B1 Pipette Blank & Measure start->B1 A2 Pipette Blank & Measure A1->A2 A3 Pipette Sample & Measure A2->A3 A4 Clean Cuvette Again A3->A4 A5 Result Available A4->A5 B2 Pipette Sample & Measure B1->B2 B3 Result Available B2->B3

Diagram 1: Workflow comparison highlighting the significant preparation and cleanup overhead associated with reusable cuvettes.

The Scientist's Toolkit: Essential Research Reagent Solutions

The table below details key materials and their functions for the experiments described in this application note.

Table 2: Essential Research Reagent Solutions and Materials

Item Function/Application Critical Notes
Quartz Cuvette (Semi-Micro) Holds liquid sample for UV-Vis analysis, essential for measurements below 300 nm [12]. Required for UV nucleic acid quantification. Reusable but requires intensive cleaning. High upfront cost [77] [79].
UV-Transparent Disposable Cuvette Holds liquid sample for UV-Vis analysis down to ~230 nm [77]. Disposable alternative to quartz, eliminates cleaning time and cross-contamination risk. Lower optical quality than quartz [77] [12].
Compatible Blank Buffer (e.g., TE Buffer) Serves as the reference solution to zero the spectrophotometer. Must be the same solvent used for the sample. Critical for accurate absorbance readings [1].
Positive Control (e.g., Known DNA Standard) Validates the entire analytical process, from instrument performance to pipetting accuracy. Provides a benchmark for expected results and confirms protocol integrity.
Lint-Free Laboratory Wipes For cleaning the external optical surfaces of cuvettes without leaving residue [80]. Essential for preventing light scatter and ensuring accurate absorbance measurements.
Fixed-Angle Plastic Pipette Tips For safe handling and transfer of samples and blanks. Plastic tips prevent scratching the delicate optical surfaces of quartz cuvettes [78].

The data and protocols presented herein clearly demonstrate a significant workflow efficiency advantage for cuvette-free systems when analyzing small sample volumes. The elimination of consumable cleaning and preparation time drastically reduces the time-to-result and sample preparation overhead, a critical consideration in high-throughput research and drug development settings.

However, the choice between systems is application-dependent. Cuvette-free systems are superior for rapid quality control, purity checks, and situations where sample volume is the limiting factor. In contrast, cuvette-based systems remain the gold standard for applications demanding the highest precision, broadest wavelength range, and flexibility in pathlength, particularly when sample volume is not a constraint. Researchers must therefore weigh the compelling efficiency gains of cuvette-free technology against the specific analytical requirements of their experiments.

For researchers working with small sample volumes, selecting the appropriate UV-Vis system is a critical step that directly impacts data accuracy, workflow efficiency, and resource utilization. The fundamental choice lies between traditional cuvette-based systems and modern cuvette-free microvolume systems. This application note provides a structured decision matrix and detailed protocols to guide researchers, scientists, and drug development professionals in selecting the optimal system based on specific experimental parameters and constraints. The core of this decision often hinges on the interplay between sample volume, concentration, and the required analytical precision within a given budget [2].

The following sections will dissect the technical specifications of both systems, provide a direct comparison, and outline standardized protocols to ensure reproducible results across various laboratory settings.

Cuvette-Based Systems

Traditional UV-Vis spectrophotometers use cuvettes—small, transparent containers with a defined pathlength—to hold liquid samples for analysis [12]. The pathlength is the distance light travels through the sample and is a key parameter in the Beer-Lambert Law, which governs absorbance measurements [1] [2].

  • Cuvette Materials and Selection: The choice of cuvette material is paramount and depends on the wavelength range of the analysis.

    • Optical Glass: Transmits visible light (~340–2500 nm) but absorbs UV light, making it unsuitable for nucleic acid quantification or other UV applications [12] [14].
    • UV-Grade Quartz: Essential for UV measurements, with a broad transparency range from ~190 nm to 2500 nm, covering UV, visible, and near-infrared spectra [81] [12] [14].
    • Plastic: Disposable and cost-effective for visible light measurements (~380–780 nm) but not suitable for UV work and can be susceptible to organic solvents [12] [11].

  • Pathlength and Volume: Cuvettes are available in various pathlengths (e.g., 1 mm to 100 mm) and volumes, categorized as macro (>3.5 mL), standard (3.5 mL), semi-micro (0.35–1.7 mL), and sub-micro (20–350 µL) [46] [14]. The standard pathlength is 10 mm.

Cuvette-Free (Microvolume) Systems

Cuvette-free systems, such as microvolume spectrophotometers, use surface tension to hold a tiny droplet of sample (e.g., 1 µL) between two optical surfaces [2]. This eliminates the need for a physical container.

  • Technology Core: These systems often employ technology that automatically selects the optimal effective pathlength for the measurement. For instance, the DeNovix SmartPath technology adjusts the pathlength to maintain absorbance within the instrument's ideal linear dynamic range, eliminating the need for manual dilutions for many samples [2].

Decision Matrix: Cuvette vs. Cuvette-Free Systems

The choice between systems is multi-factorial. The following table summarizes the key decision-making criteria to guide the selection process.

Table 1: System Selection Decision Matrix

Decision Factor Cuvette-Based System Cuvette-Free (Microvolume) System
Optimal Sample Volume > 50 µL [46] [12] Very small volumes (0.5 - 2 µL) [2]
Ideal Sample Type Volatile solvents (e.g., acetone, ethanol), microbial suspensions for OD600, kinetic assays [2] Aqueous solutions (e.g., nucleic acids, proteins, buffers) [2]
Concentration Range Broad, but may require manual dilution for high concentrations [81] Very high to low concentrations; automated pathlength adjustment avoids dilution for a wide range (e.g., 0.75 ng/µL to 37,500 ng/µL for dsDNA) [2]
Key Cost Considerations Lower instrument cost, but recurring cost of cuettes (disposable) or cleaning time (reusable) [12] Higher instrument cost, but no consumable cost for measurements; reduced reagent usage [2]
Throughput & Workflow Suitable for single samples or kinetic assays; slower if dilutions are needed [2] Rapid measurement of multiple samples; minimal cleanup (wiping); high workflow efficiency [2]
Data Accuracy & Linearity High accuracy with a correct pathlength cuvette; risk of error if concentration is too high for the fixed pathlength [1] [2] High accuracy; automated pathlength control maintains measurements within the linear dynamic range [2]

Visual Decision Workflow

The logic for selecting the appropriate system can be summarized in the following workflow. This diagram guides the user through a series of key questions to arrive at the recommended system.

G Start Start: System Selection Q1 Is available sample volume less than 50 µL? Start->Q1 Q2 Is the sample in a volatile organic solvent? Q1->Q2 No A1 Recommended System: Cuvette-Free Microvolume Q1->A1 Yes Q3 Is the application OD600 or a kinetic assay? Q2->Q3 No A2 Recommended System: Traditional Cuvette Q2->A2 Yes Q3->A1 No Q3->A2 Yes

Experimental Protocols

Protocol 1: Nucleic Acid Quantification and Purity Assessment using a Cuvette-Free System

This protocol is designed for the rapid quantification of DNA or RNA using a microvolume spectrophotometer, ideal for checking yield and purity after extraction.

1. Purpose: To determine the concentration and purity (A260/A280 and A260/A230 ratios) of a nucleic acid sample using only 1 µL of volume.

2. Scope: Applicable to purified dsDNA, ssDNA, RNA, and oligonucleotides in aqueous solution.

3. Reagents and Equipment:

  • Microvolume UV-Vis Spectrophotometer (e.g., DeNovix DS-Series, Thermo Scientific NanoDrop)
  • Nucleic acid sample
  • Nuclease-free water or matching elution buffer (for blank)
  • Lint-free laboratory wipes
  • Micropipette and appropriate tips

4. Procedure: 1. System Initialization: Power on the instrument and software. Select the "Nucleic Acid" application and the specific assay (e.g., "dsDNA"). 2. Blank Measurement: Apply 1 µL of nuclease-free water or the sample's elution buffer to the lower measurement pedestal. Close the arm to form the liquid column. Execute the blank measurement. Wipe both pedestals clean with a lint-free wipe after the measurement. 3. Sample Measurement: Apply 1 µL of the nucleic acid sample to the lower pedestal. Close the arm and initiate the measurement. 4. Data Recording: Record the concentration (in ng/µL) and the absorbance ratios A260/A280 and A260/230. A ratio of ~1.8 is generally accepted for pure DNA, and ~2.0 for pure RNA. 5. Cleanup: Open the arm and thoroughly wipe both the upper and lower pedestals with a clean, dry, lint-free lab wipe.

5. Data Analysis:

  • Concentration is automatically calculated by the instrument's software using the known extinction coefficients of nucleic acids.
  • Purity is assessed from the ratios: A260/A280 assesses protein contamination; A260/A230 assesses salt or solvent contamination [1].

Protocol 2: Protein Concentration Determination using a Cuvette-Based System

This protocol is for quantifying protein concentration using the Bradford assay in a standard 10 mm quartz cuvette.

1. Purpose: To determine the concentration of a protein sample against a standard curve using a colorimetric assay.

2. Scope: Applicable to soluble proteins compatible with Bradford reagent.

3. Reagents and Equipment:

  • UV-Vis Spectrophotometer with cuvette holder
  • Quartz cuvettes (10 mm pathlength, for use at 595 nm)
  • Bradford reagent
  • Protein standard (e.g., Bovine Serum Albumin - BSA)
  • Protein sample
  • Micropipettes and tips

4. Procedure: 1. Preparation of Standards: Prepare a series of BSA standards in a concentration range of 0 to 2000 µg/mL, using the same buffer as the unknown sample. 2. Reaction Setup: Pipette 1 mL of Bradford reagent into a clean quartz cuvette. Add 10 µL of the standard, sample, or blank (buffer). Mix thoroughly by inverting the cuvette several times (if sealed with a cap) or by pipetting up and down. Avoid introducing bubbles. 3. Incubation: Incubate the reaction mixture at room temperature for at least 5 minutes (follow reagent manufacturer's instructions). 4. Absorbance Measurement: Set the spectrophotometer to measure absorbance at 595 nm. Use a cuvette with 1 mL of Bradford reagent and 10 µL of buffer as the blank. Measure the absorbance of each standard and unknown sample against this blank. 5. Standard Curve: Plot the absorbance of the standards against their known concentrations. Perform a linear regression analysis. 6. Concentration Calculation: Calculate the concentration of the unknown sample(s) by interpolating its absorbance from the standard curve.

5. Data Analysis:

  • Ensure the R² value of the standard curve is >0.99.
  • If the absorbance of the unknown sample falls outside the linear range of the standard curve, the sample must be diluted and re-measured.

The Scientist's Toolkit: Essential Research Reagent Solutions

Table 2: Key Materials and Reagents for UV-Vis Analysis

Item Function & Application Critical Considerations
Quartz Cuvettes (UV-Grade) Holding samples for UV-range analysis (e.g., nucleic acids, proteins at 280 nm) [81] [12]. Essential for wavelengths <300 nm. Chemically resistant to most organic solvents and acids. Reusable but require careful cleaning.
Optical Glass Cuvettes Holding samples for visible-range analysis (e.g., colorimetric assays like Bradford, BCA) [12] [11]. Cannot be used for UV measurements. Cost-effective for visible light work.
Disposable Plastic Cuvettes Single-use sample holding for visible light assays; ideal for teaching labs or avoiding cross-contamination [12]. Inexpensive but not UV-transparent. Can be degraded by organic solvents.
Bradford Assay Reagent Colorimetric detection of protein concentration; binds to proteins causing a shift in absorbance max to 595 nm [46]. Compatibility with the protein of interest must be verified, as the assay can be influenced by protein composition.
Nuclease-Free Water Blank solution and diluent for nucleic acid samples [2]. Prevents degradation of RNA and DNA by nucleases. Ensures a clean baseline for accurate quantification.
BSA (Bovine Serum Albumin) Protein standard for generating calibration curves in protein quantification assays [46]. Provides a known reference to convert sample absorbance into a concentration value.

Selecting between cuvette and cuvette-free UV-Vis systems is not a matter of one technology being universally superior, but of matching the technology to the specific experimental needs. For high-throughput analysis of precious, small-volume aqueous samples—a common scenario in modern genomics and proteomics—cuvette-free microvolume systems offer unparalleled advantages in speed, sample conservation, and simplified workflow. Conversely, for applications involving volatile solvents, kinetic studies, or traditional colorimetric assays with ample sample, cuvette-based systems remain the robust and appropriate choice.

This decision matrix and the accompanying protocols provide a clear framework for researchers to make an informed, rational selection, thereby optimizing data quality and laboratory efficiency in drug development and basic research.

Conclusion

The choice between cuvette and cuvette-free UV-Vis systems is not a matter of one being universally superior, but rather of selecting the right tool for specific research applications. Cuvette-free microvolume systems offer unparalleled efficiency for routine, small-volume analyses of aqueous samples, conserving precious material and streamlining workflows in molecular biology and drug discovery. Traditional cuvettes remain essential for applications involving organic solvents, kinetic studies, and light scattering measurements. The future of biomedical and clinical research will likely see further integration of both technologies, with advances in automation and data analysis enhancing their roles in quality control, diagnostic development, and personalized medicine. By understanding the strengths and limitations of each system, researchers can make strategic decisions that improve data quality, accelerate timelines, and ultimately drive scientific innovation.

References
